产品规格
| Shank Height (H) | 1.89″ | 刀体材质 | Steel |
| Body Width (WB) | 0.157″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 0.189″ | 测量方式 | Inch |
| Cutting Width Maximum (CWX) | 0.197″ | Tool Assembly Length (LTA) | 1.565″ |
| Overall Length (OAL) | 3.06″ | 单位 | I |
| 应用 | | 切断加工 | 外圆切槽加工 | |

产品特性

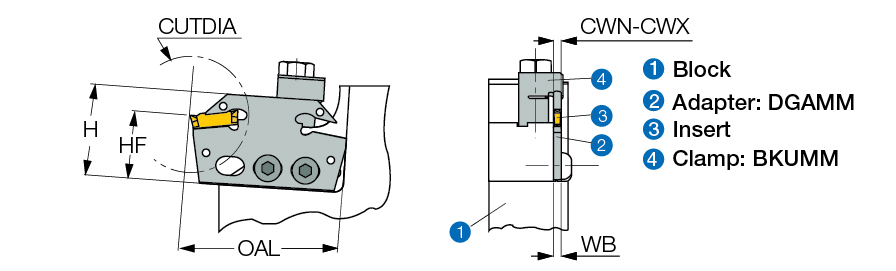

| 系列描述 | 可换式DO-GRIP刀夹,可用于其它制造商的刀杆。用于切断切槽加工,夹持双头刀片。 | 系列名称 | DGAMM |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.2315
名字

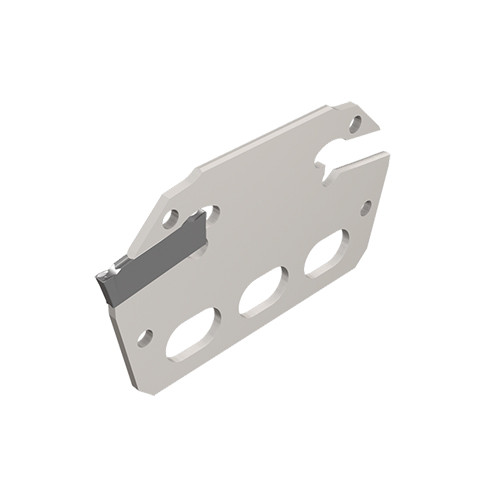

Parting Off Indexable Holders
系列名称
DGAMM
品牌
Iscar
