产品规格

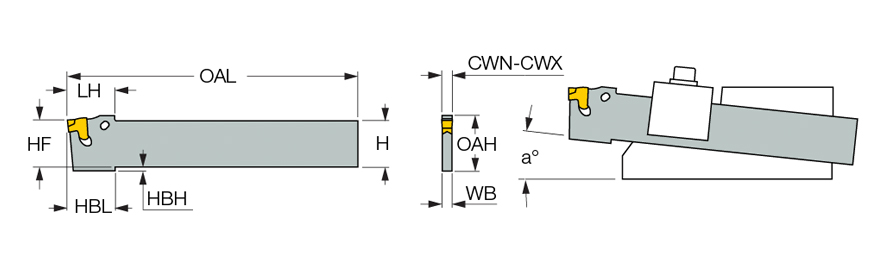

| Shank Height (H) | 17.4 mm | 刀体材质 | Steel |
| Body Width (WB) | 1.65 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 1.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 35 mm |
| Cutting Width Maximum (CWX) | 2.4 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 110 mm | 测量方式 | Metric |
| Head Length (LH) | 18 mm | Tool Assembly Length (LTA) | 28 mm |
| Overall Height (OAH) | 18.9 mm | 单位 | M |
| 应用 | | 切断加工 | 外圆切槽加工 | |
产品特性

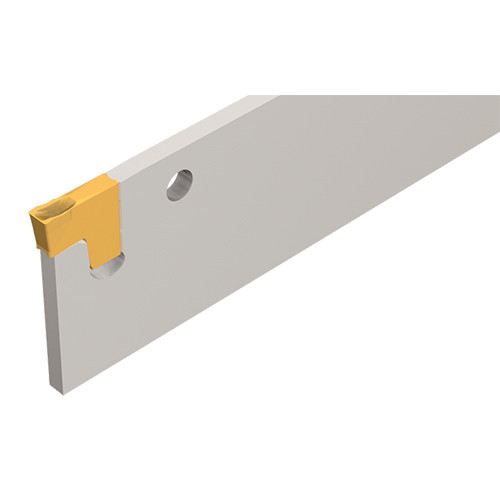

| 系列描述 | 用于多轴机床的刀板，可替换高速钢（HSS）刀具及焊接刀具，夹持立装自夹式刀片TANG-GRIP | 系列名称 | TGFS |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.0310
名字
Parting Off Indexable Holders
系列名称
TGFS
品牌
Iscar
