产品规格

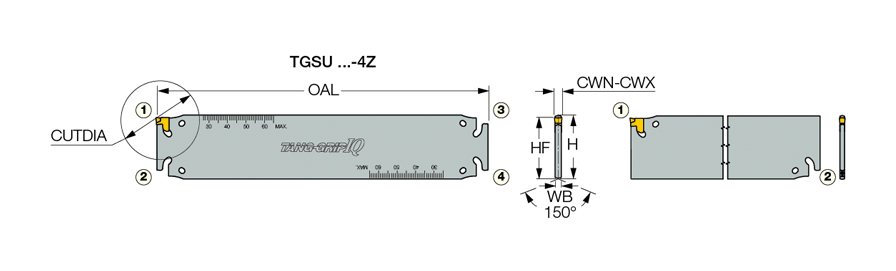

| Shank Height (H) | 35 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 2.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 59.5 mm |
| Cutting Width Minimum (CWN) | 1.8 mm | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 2.4 mm | 测量方式 | Metric |
| Overall Length (OAL) | 160 mm | Body Width_2 (WB_2) | 2.5 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | Tool Assembly Length (LTA) | 41.75 mm |
| Number of Pocket (NOP) | 2 | 单位 | M |
| 刀体材质 | Steel |
产品特性
| 系列描述 | 高刚性刀板。能以非常高的进给率加工，实现卓越的直线度及加工表面质量。平顶刀板无上压爪，加工中无切屑干扰。 | 系列名称 | TGSU |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.1080
名字

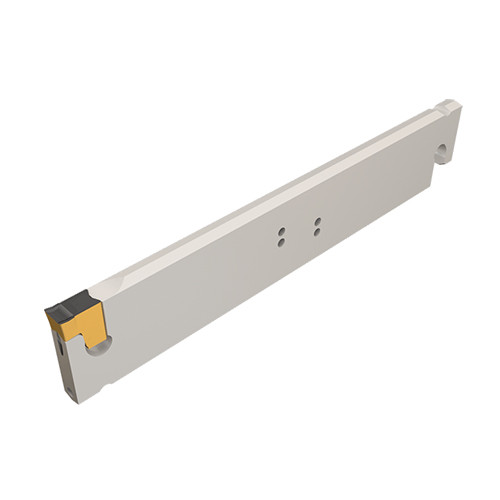

Parting Off Indexable Holders
系列名称
TGSU
品牌
Iscar
