产品规格
| Shank Height (H) | 32 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 1.65 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 42 mm |
| Cutting Width Minimum (CWN) | 1.8 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 2.4 mm | 测量方式 | Metric |
| Overall Length (OAL) | 110.5 mm | Body Width_2 (WB_2) | 7.9 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | Tool Assembly Length (LTA) | 32.5 mm |
| Number of Pocket (NOP) | 1 | 单位 | M |
| 刀体材质 | Steel |
产品特性
| 系列描述 | 单头及双头切断、切槽刀板，夹持立装自夹式刀片TANG-GRIP | 系列名称 | TGFHR/L |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.1850
名字

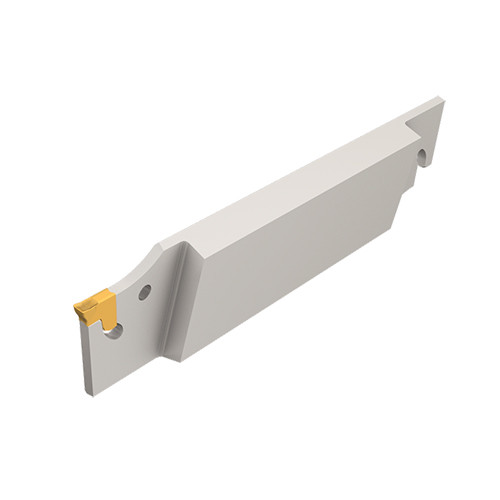

Parting Off Indexable Holders
系列名称
TGFHR/L
品牌
Iscar
