产品规格

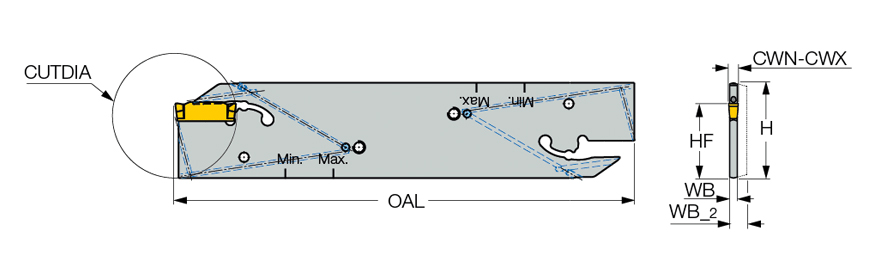

| Shank Height (H) | 32 mm | 刀体材质 | Steel |
| Body Width (WB) | 1.8 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 1.9 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 39 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 150 mm | 测量方式 | Metric |
| Functional Length (LF) | 150 mm | Body Width_2 (WB_2) | 2.5 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | Tool Assembly Length (LTA) | 29.8 mm |
| Number of Pocket (NOP) | 2 | 单位 | M |
产品特性
| 系列描述 | 切断、切槽刀板，带内冷却通道，适用于低压-高压冷却，夹持DO-GRIP刀片 | 系列名称 | DGFH-JHP |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.1080
名字
Parting Off Indexable Holders
系列名称
DGFH-JHP
品牌
Iscar
