产品规格

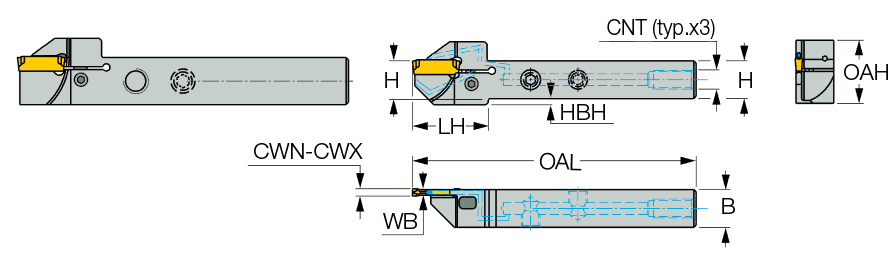

| Shank Height (H) | 1/2″ | 刀体材质 | Steel |
| Shank Width (B) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 0.067″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.94″ |
| Cutting Width Minimum (CWN) | 0.075″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.1″ | 测量方式 | Inch |
| Overall Length (OAL) | 3.94″ | Coolant Entry Thread Size (CNT) | 5/16 UNF |
| Head Length (LH) | 1.1″ | Tool Assembly Length (LTA) | 1.49″ |
| Overall Height (OAH) | 1″ | 单位 | I |
| 应用 | | 切断加工 | 外圆切槽加工 | |
产品特性
| 系列描述 | 切断、切槽侧锁紧机构刀杆，带高压冷却通道，适用于瑞士自动机床及小型CNC数控车床 | 系列名称 | DGTR/L-B-D-JHP-SL |
| 备注 | DGN/R/L 1 mm刀片可装夹于定位槽宽度为2及3的刀杆。需参照“依据工件直径确定切深”表对切宽为2及3的刀杆定位槽处做修磨处理，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.4806
名字
Parting Off Indexable Holders
系列名称
DGTR/L-B-D-JHP-SL
品牌
Iscar
