产品规格

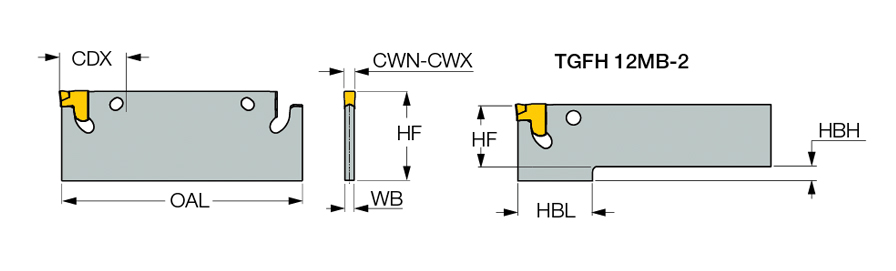

| Body Width (WB) | 3.4 mm | 刀体材质 | Steel |
| Cutting Width Minimum (CWN) | 3.7 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 4.5 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 70 mm | 测量方式 | Metric |
| Cutting Depth Maximum (CDX) | 14 mm | Body Width_2 (WB_2) | 3.4 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | Tool Assembly Length (LTA) | 28 mm |
| Number of Pocket (NOP) | 2 | 单位 | M |
产品特性
| 系列描述 | 切断切槽刀板，用于其它刀具制造商的刀座，夹持立装自夹式单头刀片TANG-GRIP | 系列名称 | TGFH-MB |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.0390
名字

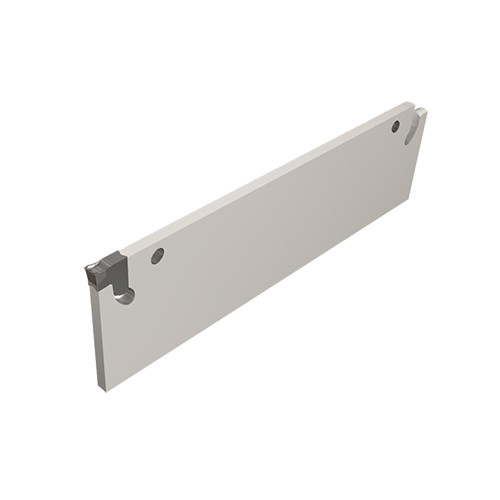

Parting Off Indexable Holders
系列名称
TGFH-MB
品牌
Iscar
