产品规格

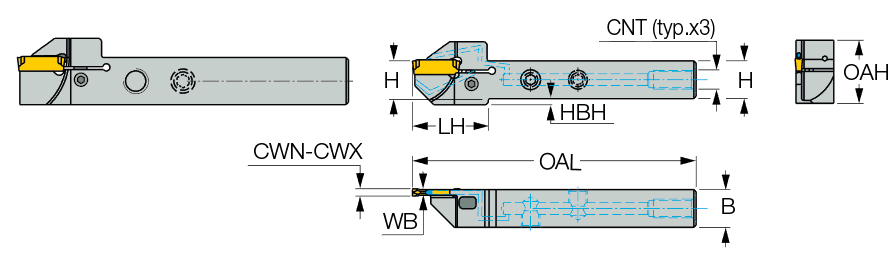

| Shank Height (H) | 12 mm | 刀体材质 | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 1.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 24 mm |
| Cutting Width Minimum (CWN) | 1.9 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 2.5 mm | 测量方式 | Metric |
| Overall Length (OAL) | 100 mm | Coolant Entry Thread Size (CNT) | 5/16″-24 UNF |
| Head Length (LH) | 29.4 mm | Tool Assembly Length (LTA) | 39.24 mm |
| Overall Height (OAH) | 25.7 mm | 单位 | M |
| 应用 | | 切断加工 | 外圆切槽加工 | |
产品特性

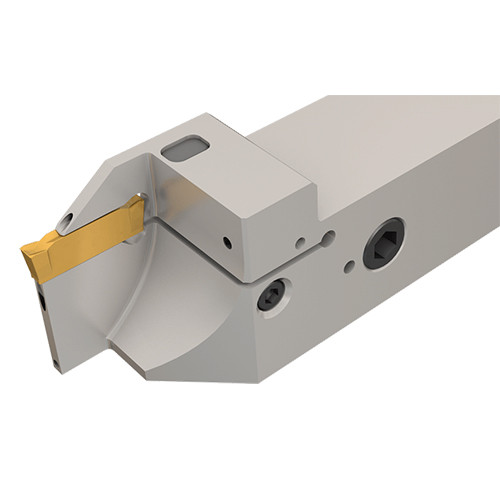

| 系列描述 | 切断、切槽侧锁紧机构刀杆，带高压冷却通道，适用于瑞士自动机床及小型CNC数控车床 | 系列名称 | DGTR/L-B-D-JHP-SL |

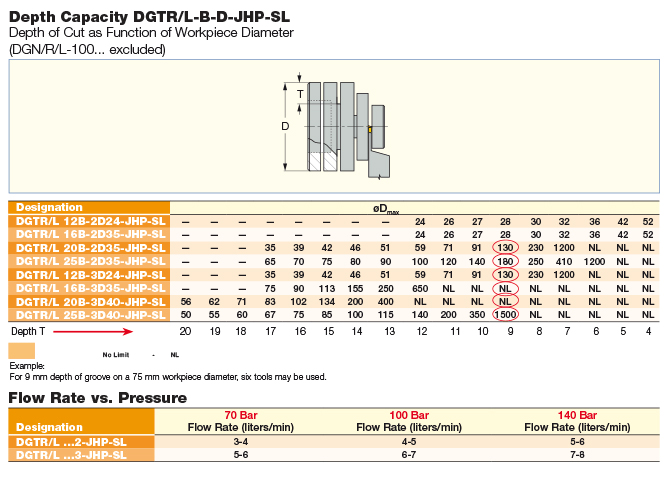

| 备注 | 刀片“依据工件直径确定切深”表对刀杆定位槽处做修磨处理，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.2070
名字
Parting Off Indexable Holders
系列名称
DGTR/L-B-D-JHP-SL
品牌
Iscar
