产品规格

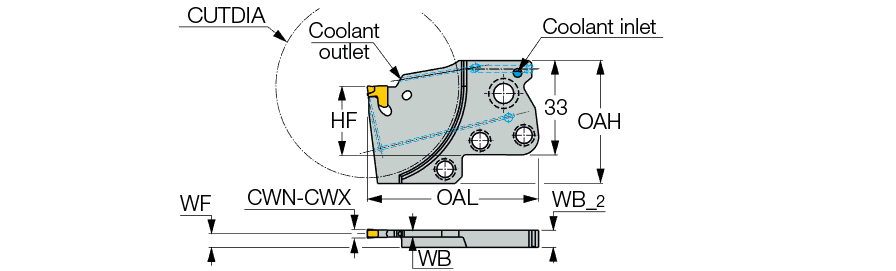

| Body Width (WB) | 3.4 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 3.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 52 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 53.4 mm | 测量方式 | Metric |
| Overall Height (OAH) | 43 mm | Body Width_2 (WB_2) | 6 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | Tool Assembly Length (LTA) | 61.82 mm |
| 刀体材质 | Steel | 单位 | M |
产品特性
| 系列描述 | 加长型切断切槽刀夹，带高压内冷通道，夹持立装自夹式槽刀片TANG-GRIP | 系列名称 | TAGPAD-XL-JHP |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.0680
名字
Parting Off Indexable Holders
系列名称
TAGPAD-XL-JHP
品牌
Iscar
