产品规格

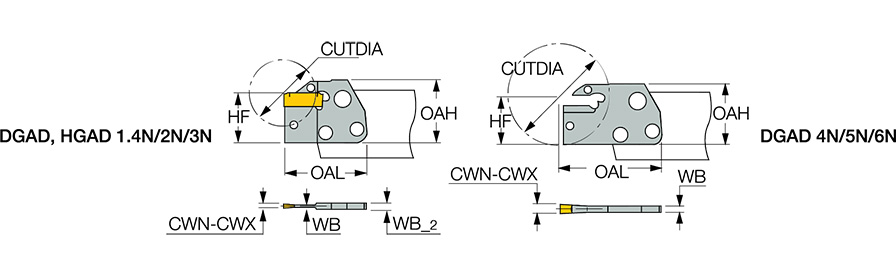

| Body Width (WB) | 4 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 4.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 50 mm |
| Cutting Width Maximum (CWX) | 5 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 50.5 mm | 测量方式 | Metric |
| Overall Height (OAH) | 30 mm | Tool Assembly Length (LTA) | 0 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | 单位 | M |
| 刀体材质 | Steel |
产品特性
| 系列描述 | 切断切槽刀夹，夹持双头刀片DO-GRIP | 系列名称 | DGAD/HGAD |

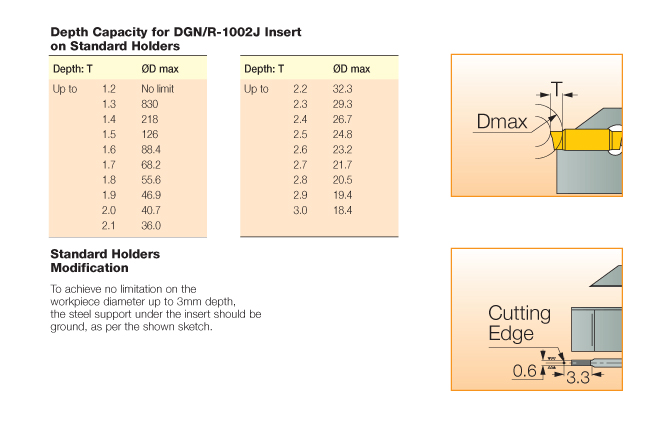

| 备注 | DG..1.0刀片可夹持于规格为2及3的定位槽，需修磨刀板定位槽，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0420
名字

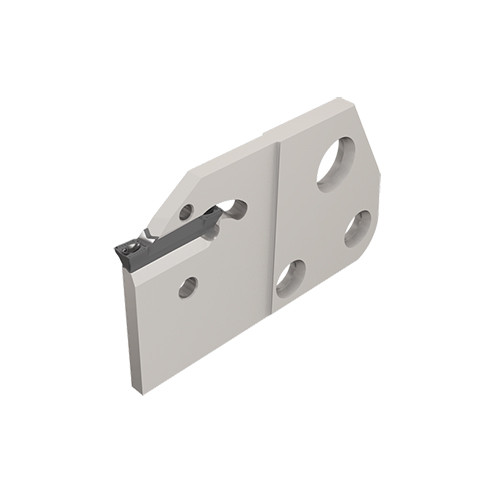

Parting Off Indexable Holders
系列名称
DGAD/HGAD
品牌
Iscar
