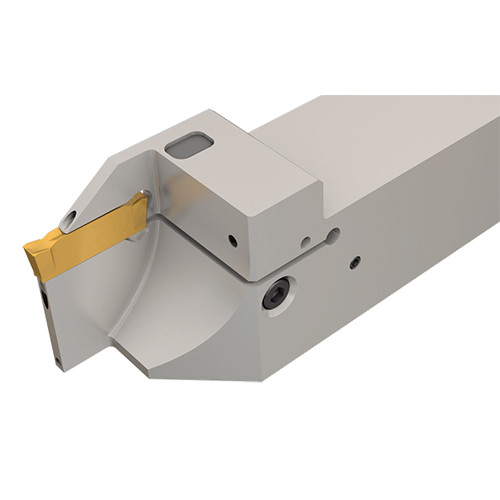

DGTR 25B-2D35-JHP-SL-MC
Parting and grooving side lock type tools with bottom inlets for high-pressure coolant and a user friendly side clamping mechanism.
Price: Log in For Price
产品规格

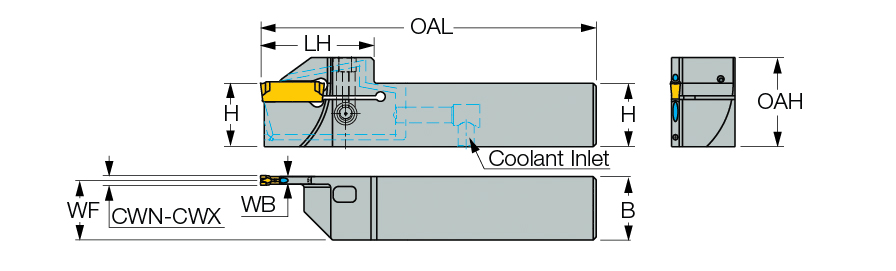

| Shank Height (H) | 25 mm | 应用 | | 切断加工 | 外圆切槽加工 | |
| Shank Width (B) | 25 mm | 刀体材质 | Steel |
| Body Width (WB) | 1.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 35 mm |
| Cutting Width Minimum (CWN) | 1.9 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 2.5 mm | 测量方式 | Metric |
| Overall Length (OAL) | 117.1 mm | Functional Width (WF) | 24.15 mm |
| Head Length (LH) | 32.1 mm | Tool Assembly Length (LTA) | 42.9 mm |
| Overall Height (OAH) | 33.1 mm | 单位 | M |
产品特性
| 系列描述 | Parting and grooving side lock type tools with bottom inlets for high-pressure coolant and a user friendly side clamping mechanism. | 系列名称 | DGTR/L-B-D-JHP-SL-MC |
| 备注 | 刀片“依据工件直径确定切深”表对刀杆定位槽处做修磨处理，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.6200
名字
Parting Off Indexable Holders
系列名称
DGTR/L-B-D-JHP-SL-MC
品牌
Iscar
