产品规格

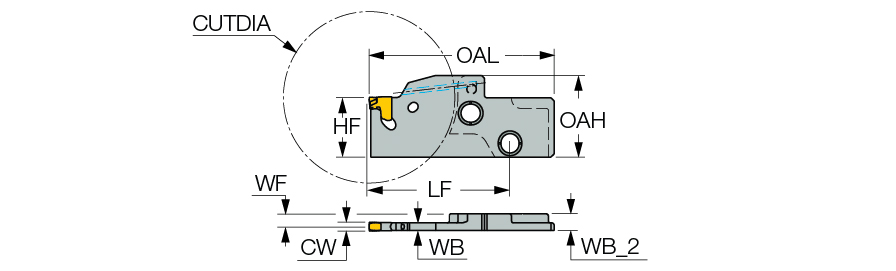

| Body Width (WB) | 1.65 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 54 mm |
| Cutting Width Minimum (CWN) | 1.8 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 2.4 mm | 测量方式 | Metric |
| Overall Length (OAL) | 58.3 mm | Functional Width (WF) | 4.48 mm |
| Overall Height (OAH) | 25.8 mm | Body Width_2 (WB_2) | 5.3 mm |
| Functional Length (LF) | 44.4 mm | Tool Assembly Length (LTA) | 56.5 mm |
| 应用 | | 切断加工 | 外圆切槽加工 | | 单位 | M |
| 刀体材质 | Steel |
产品特性
| 系列描述 | 切断切槽刀夹，带高压内冷通道，夹持立装自夹式槽刀片TANG-GRIP | 系列名称 | TGAD RE/LE-JHP |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.0350
名字
Parting Off Indexable Holders
系列名称
TGAD RE/LE-JHP
品牌
Iscar
