产品规格

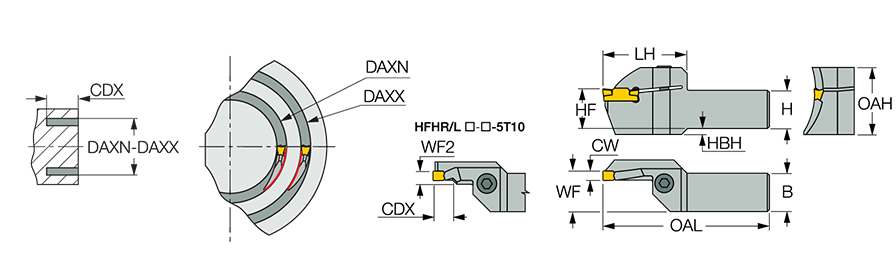

| Shank Width (B) | 20 mm | 应用 | | 端面切槽 & 车削 | 端面切槽加工 | |
| Shank Height (H) | 20 mm | Head Length (LH) | 44 mm |
| Cutting Depth Maximum (CDX) | 25 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width (CW) | 5 mm | 刀体材质 | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 21 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 70 mm | 测量方式 | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 55 mm | 单位 | M |
| Overall Length (OAL) | 140 mm |
产品特性
| 系列描述 | 整体式刀杆，用于端面加工 | 系列名称 | HFHR/L-5T |
| 备注 | 刀片装夹说明，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.4750
名字
Face Groove/Turn Indexable Holders
系列名称
HFHR/L-5T
品牌
Iscar
Related Documentation
No limitation for widening groove outward/toward center, except for the tools above. The inserts DGN 5003 and GRIP 5005Y can be used with right-hand toolholder only.
