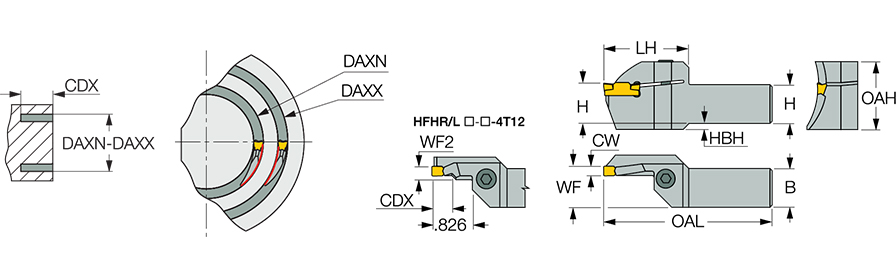

产品规格
| Shank Width (B) | 1″ | Overall Length (OAL) | 6″ |
| Shank Height (H) | 1″ | 应用 | | 端面切槽 & 车削 | 端面切槽加工 | |
| Cutting Depth Maximum (CDX) | 0.98″ | Head Length (LH) | 1.73″ |
| Cutting Width (CW) | 0.157″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Maximum (CWX) | 0.189″ | 刀体材质 | Steel |
| Cutting Width Minimum (CWN) | 0.157″ | Functional Width (WF) | 1.02″ |
| Cutting Direction (HAND) | Right Hand | 测量方式 | Inch |
| Axial Groove Outside Diameter Maximum (DAXX) | 5.51″ | 单位 | I |
| Axial Groove Outside Diameter Minimum (DAXN) | 3.94″ |
产品特性
| 系列描述 | 整体式刀杆，用于端面切槽加工 | 系列名称 | HFHR/L-4T |
| 备注 | 刀片装夹说明，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.6314
名字

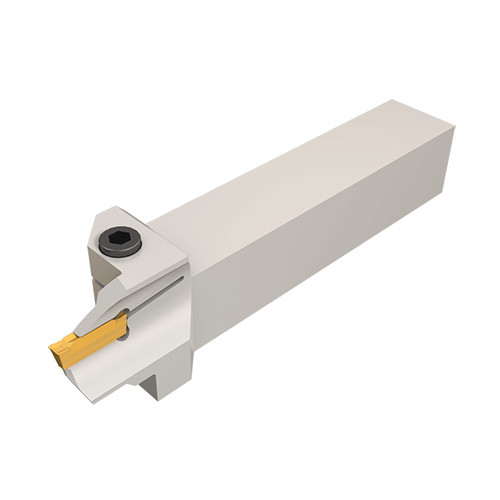

Face Groove/Turn Indexable Holders
系列名称
HFHR/L-4T
品牌
Iscar
Related Documentation

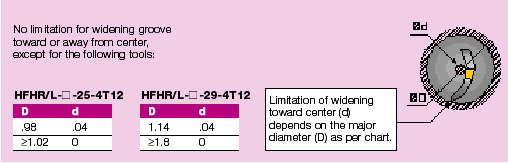

No limitation for widening groove outward/toward center, except for the tools above. The inserts DGN 4003 and GRIP 4004Y can be used with right-hand toolholder only.
