产品规格

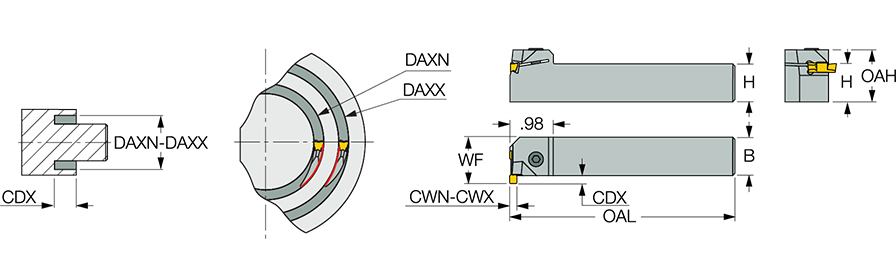

| Shank Width (B) | 3/4″ | Overall Length (OAL) | 5″ |
| Shank Height (H) | 3/4″ | 应用 | | 端面切槽加工 | |
| Cutting Depth Maximum (CDX) | 0.197″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Maximum (CWX) | 0.236″ | 刀体材质 | Steel |
| Cutting Width Minimum (CWN) | 0.118″ | Functional Width (WF) | 0.96″ |
| Cutting Direction (HAND) | Right Hand | 测量方式 | Inch |
| Axial Groove Outside Diameter Maximum (DAXX) | 78.74″ | 单位 | I |
| Axial Groove Outside Diameter Minimum (DAXN) | 0.95″ |
产品特性
| 系列描述 | Perpendicular toolholders for shallow face grooving, Dmin .78″. | 系列名称 | HFHPR/L-M |

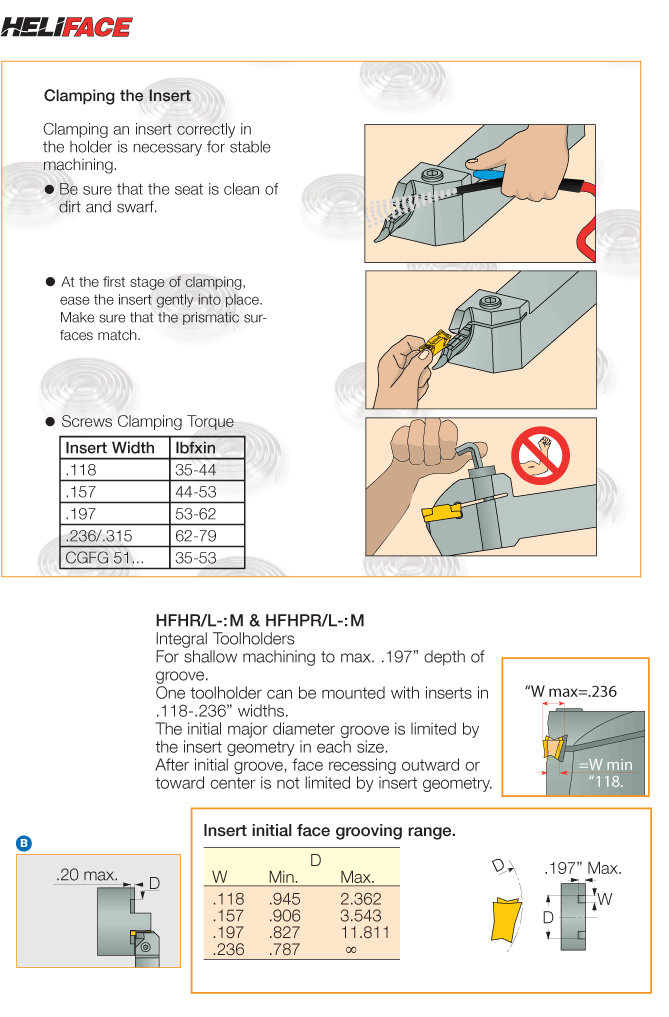

| 备注 | 刀片装夹说明，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.9348
名字

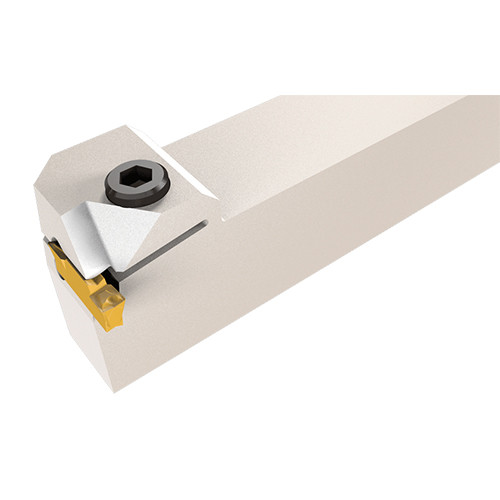

Face Groove/Turn Indexable Holders
系列名称
HFHPR/L-M
品牌
Iscar
