产品规格

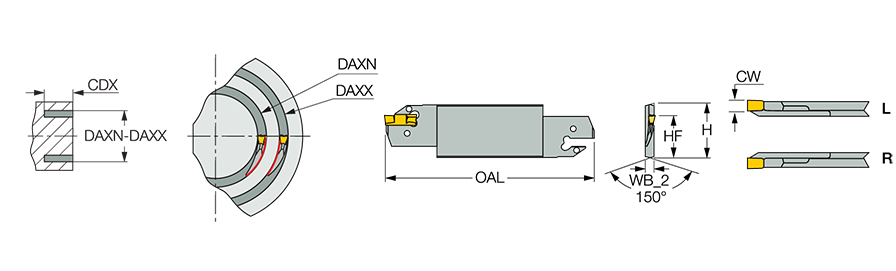

| Shank Height (H) | 32 mm | Axial Groove Outside Diameter Minimum (DAXN) | 130 mm |
| Cutting Depth Maximum (CDX) | 38 mm | Overall Length (OAL) | 150 mm |
| Cutting Width (CW) | 5 mm | 应用 | | 端面切槽 & 车削 | 端面切槽加工 | |
| Cutting Width Maximum (CWX) | 5 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 5 mm | 刀体材质 | Steel |
| Cutting Direction (HAND) | Right Hand | 测量方式 | Metric |
| Axial Groove Outside Diameter Maximum (DAXX) | 180 mm | 单位 | M |
产品特性
| 系列描述 | 用于端面切槽的刀板，最小加工孔径DMIN=48mm | 系列名称 | HFFR/L-T |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.1540
名字
Face Groove/Turn Indexable Holders
系列名称
HFFR/L-T
品牌
Iscar
