产品规格

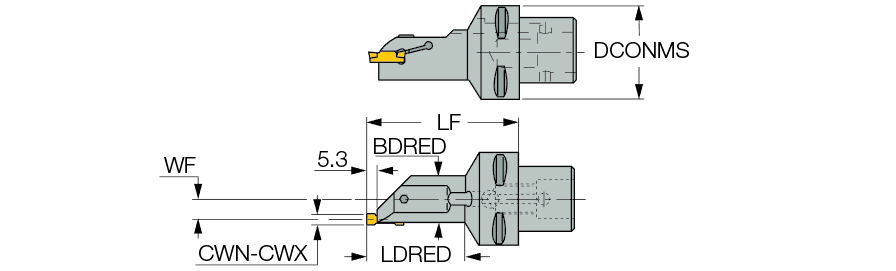

| Cutting Depth Maximum (CDX) | 5.3 mm | 应用 | | 内孔端面切槽 | 端面切槽 & 车削 | 端面切槽加工 | |
| Cutting Width (CW) | 4 mm | Tool Type | Indexable Turn & Groov Tools |
| Cutting Width Maximum (CWX) | 6 mm | 刀体材质 | Steel |
| Cutting Width Minimum (CWN) | 3 mm | Functional Width (WF) | 11.3 mm |
| Cutting Direction (HAND) | Right Hand | 测量方式 | Metric |
| Overall Length (OAL) | 104 mm | 单位 | M |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
产品特性

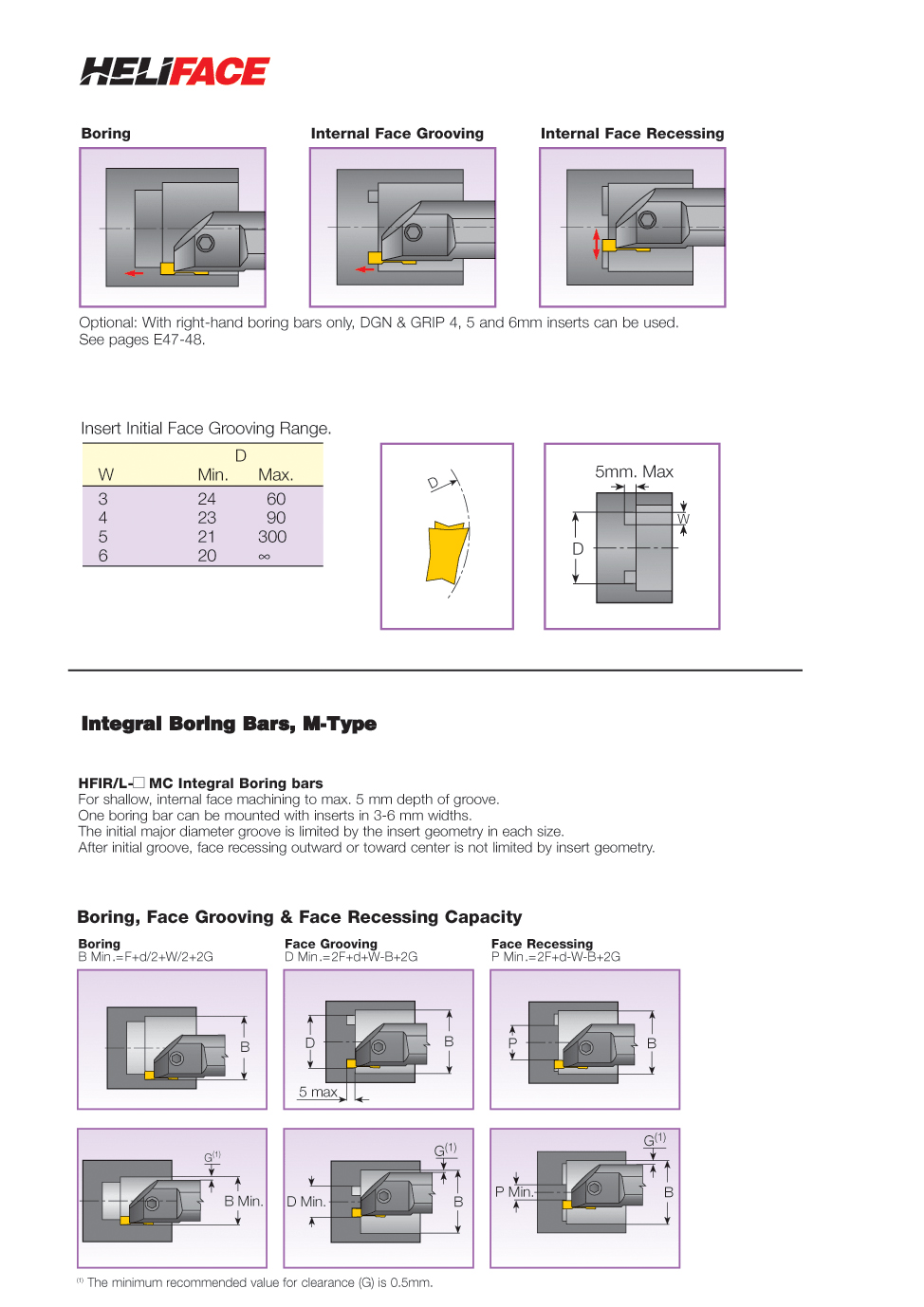

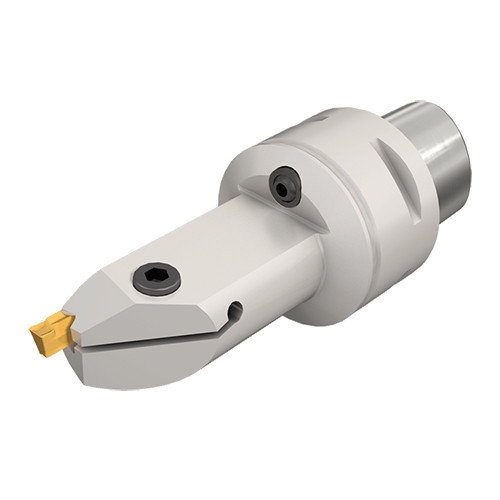

| 系列描述 | CAMFIX型(ISO 26623-1标准)快换刀柄镗头，用于内孔车削、切槽加工，最小加工孔径Dmin. 20 mm。 | 系列名称 | C#-HFIR/L-MC |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.4910
名字
Face Groove/Turn Indexable Holders
系列名称
C#-HFIR/L-MC
品牌
Iscar
