产品规格

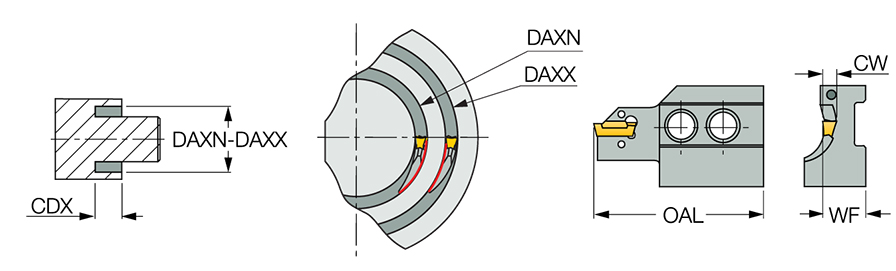

| Cutting Depth Maximum (CDX) | 25 mm | Overall Length (OAL) | 66 mm |
| Cutting Width (CW) | 5 mm | 应用 | | 端面切槽 & 车削 | 端面切槽加工 | |
| Cutting Width Maximum (CWX) | 5 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 5 mm | 刀体材质 | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 12.2 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 130 mm | 测量方式 | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 95 mm | 单位 | M |
产品特性
| 系列描述 | 刀夹，用于外端面沿轴向切槽。最小加工孔径Dmin 70mm | 系列名称 | HFAER/L-5T, 6T |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.1410
名字

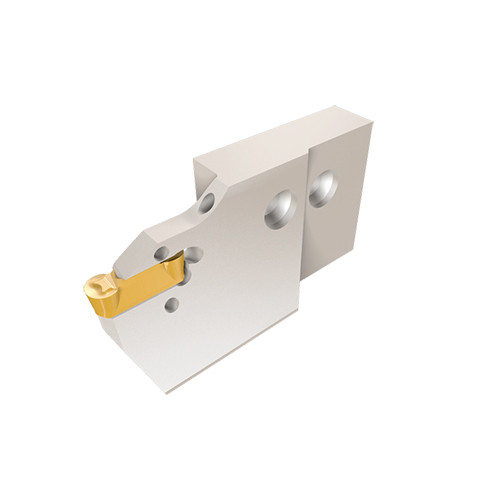

Face Groove/Turn Indexable Holders
系列名称
HFAER/L-5T, 6T
品牌
Iscar
