产品规格

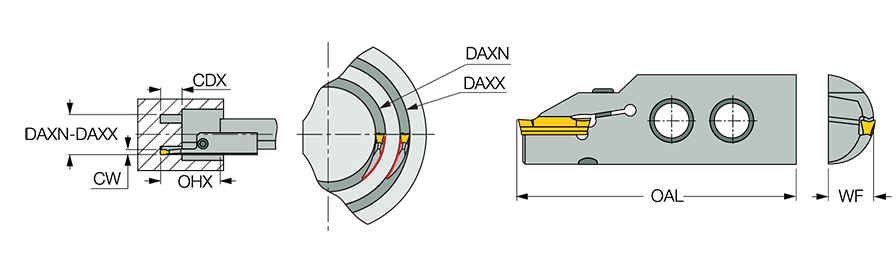

| Cutting Depth Maximum (CDX) | 20 mm | 应用 | | 内孔端面切槽 | 端面切槽 & 车削 | 端面切槽加工 | |
| Cutting Width (CW) | 4 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | 刀体材质 | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 48 mm | Functional Width (WF) | 15.3 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 40 mm | 测量方式 | Metric |
| Overall Length (OAL) | 67 mm | 单位 | M |
产品特性
| 系列描述 | 刀夹，用于外端面沿轴向切槽。最小加工孔径Dmin 40mm | 系列名称 | HFAIR/L-4 |

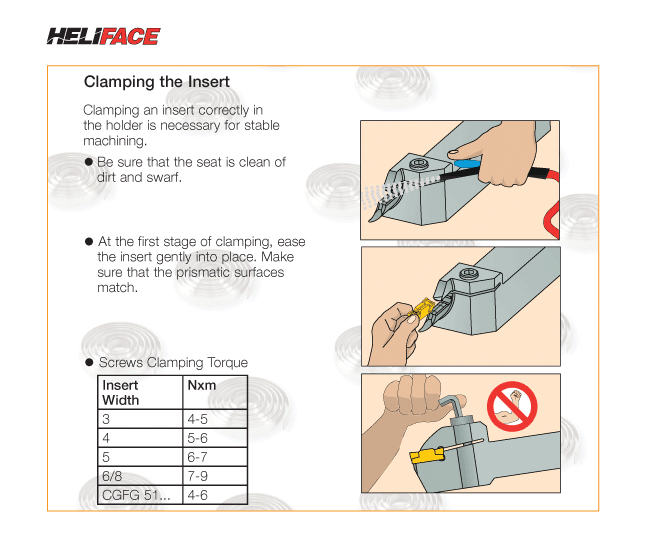

| 备注 | 刀片装夹说明，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1480
名字

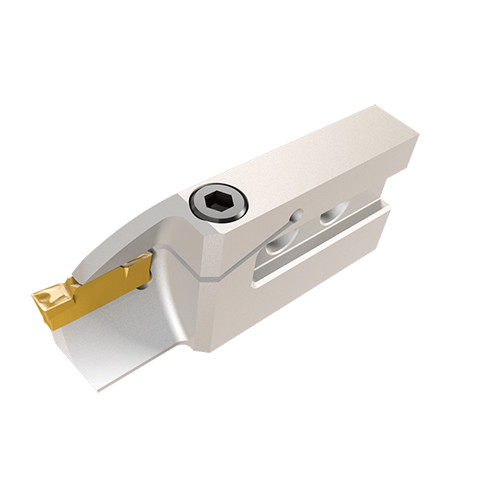

Face Groove/Turn Indexable Holders
系列名称
HFAIR/L-4
品牌
Iscar
