产品规格

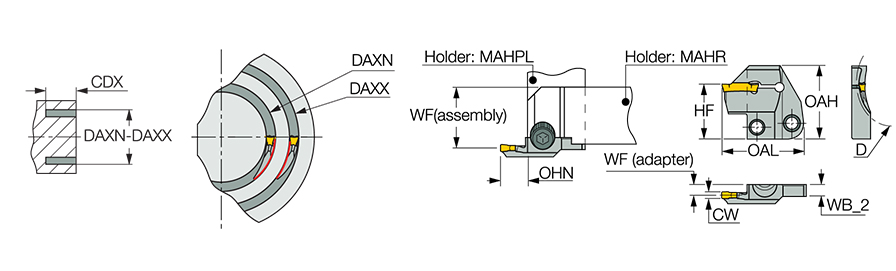

| Cutting Depth Maximum (CDX) | 14 mm | Overall Length (OAL) | 40.5 mm |
| Cutting Width (CW) | 4 mm | 应用 | | 端面切槽 & 车削 | 端面切槽加工 | |
| Cutting Width Maximum (CWX) | 4.8 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 4 mm | 刀体材质 | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 4.5 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 58 mm | 测量方式 | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 44 mm | 单位 | M |
产品特性

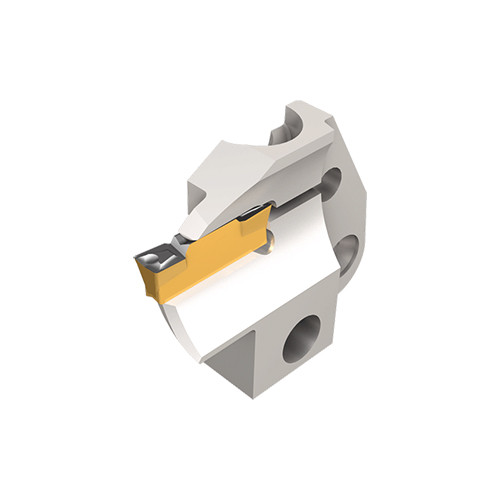

| 系列描述 | 刀夹，用于端面切槽加工，首切直径范围为25-800 mm。归属于MODULAR-GRIP系统。 | 系列名称 | HFPAD-4 |

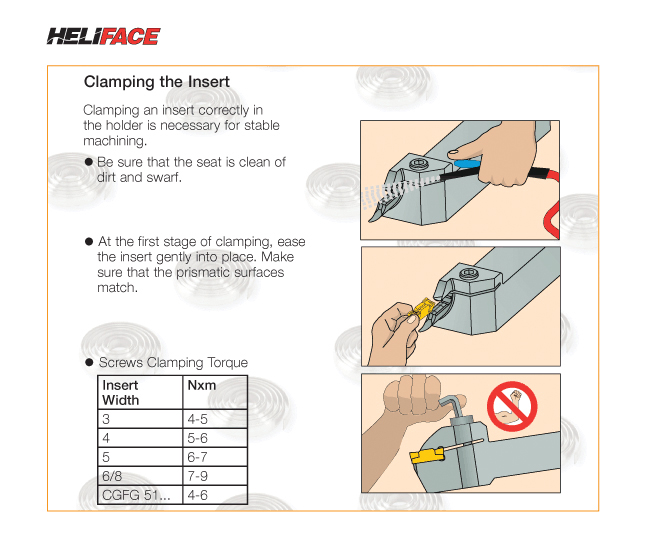

| 备注 | WF(装配后)=WF(刀杆)+WF(刀夹) DGN & GRIP 4..刀片仅适用于右手刀夹，HGPL 4刀片仅适用于左手刀夹 刀片装夹说明，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0440
名字
Face Groove/Turn Indexable Holders
系列名称
HFPAD-4
品牌
Iscar
Related Documentation
Inserts: GRIP 4...Y & 476-...Y, DGN 4003C/J can be used with right-hand adapters for grooving only
