产品规格

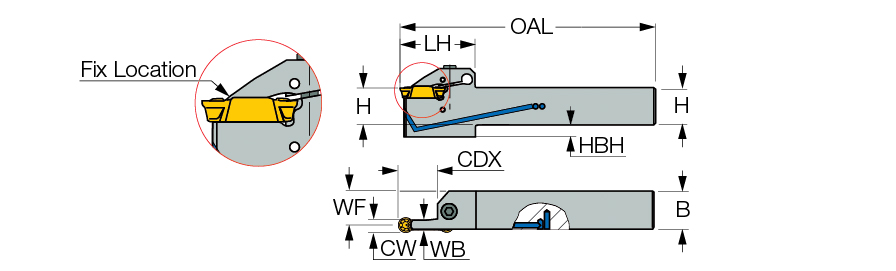

| Shank Width (B) | 25 mm | Head Length (LH) | 50 mm |
| Shank Height (H) | 25 mm | Tool Type | Turn-Groove Tools |
| Cutting Depth Maximum (CDX) | 25 mm | 刀体材质 | Steel |
| Cutting Width (CW) | 8 mm | Functional Width (WF) | 22 mm |
| Cutting Direction (HAND) | Left Hand | 测量方式 | Metric |
| Overall Length (OAL) | 170 mm | 单位 | M |
| 应用 | | 外圆仿形车削 切槽加工 | |
产品特性
| 系列描述 | 带内冷却通孔的刀杆，超强切槽刀片，用于铝轮毂的断续切削及背车加工 | 系列名称 | FGHR/L |

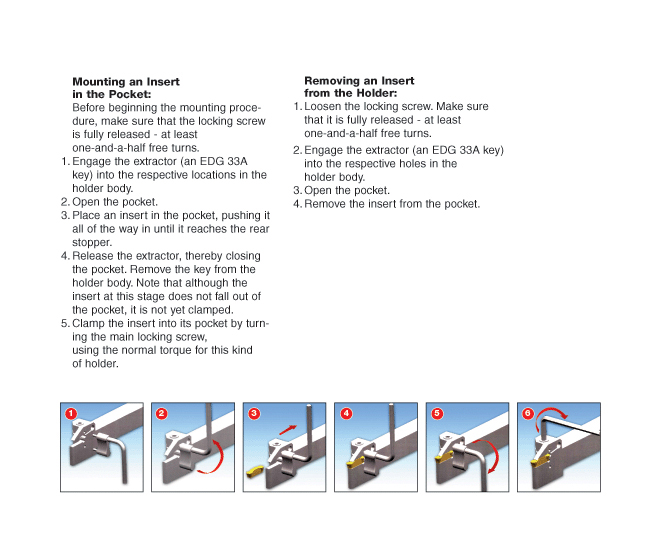

| 备注 | Upper jaw with hard coating to sustain chip deflection Note: For mounting and removing the inserts, click on More Info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.8690
名字

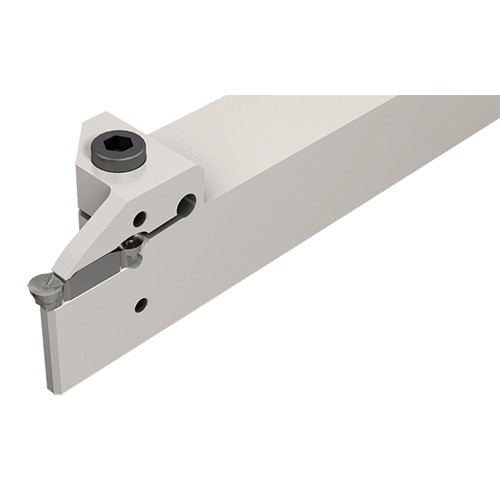

Face Groove/Turn Indexable Holders
系列名称
FGHR/L
品牌
Iscar
