产品规格

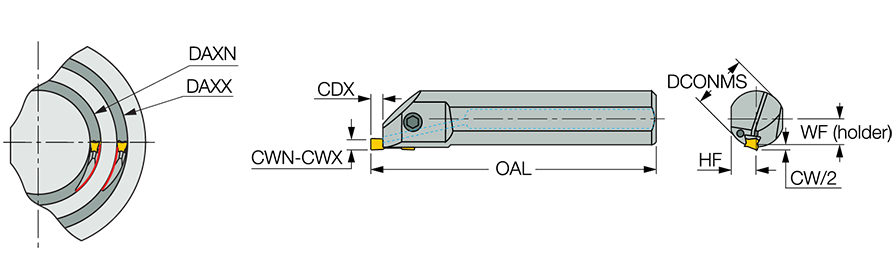

| Cutting Width Minimum (CWN) | 3 mm | 应用 | | 内孔端面切槽 | 端面切槽 & 车削 | 端面切槽加工 | |
| Cutting Width Maximum (CWX) | 6 mm | 刀体材质 | Steel |
| Cutting Depth Maximum (CDX) | 5 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 18.7 mm | 测量方式 | Metric |
| Overall Length (OAL) | 300 mm | 单位 | M |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
产品特性

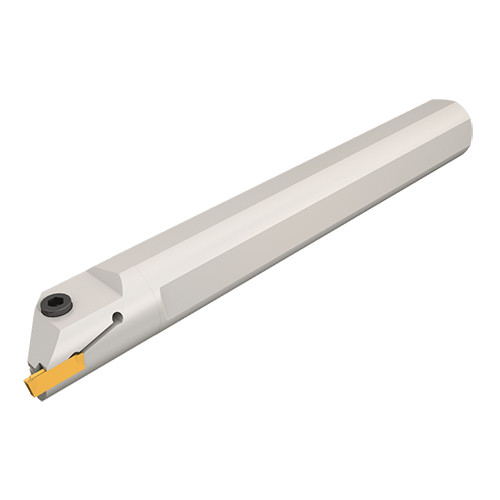

| 系列描述 | Boring bars for internal grooving and turning, Dmin. 20 mm. | 系列名称 | HFIR/L-MC |

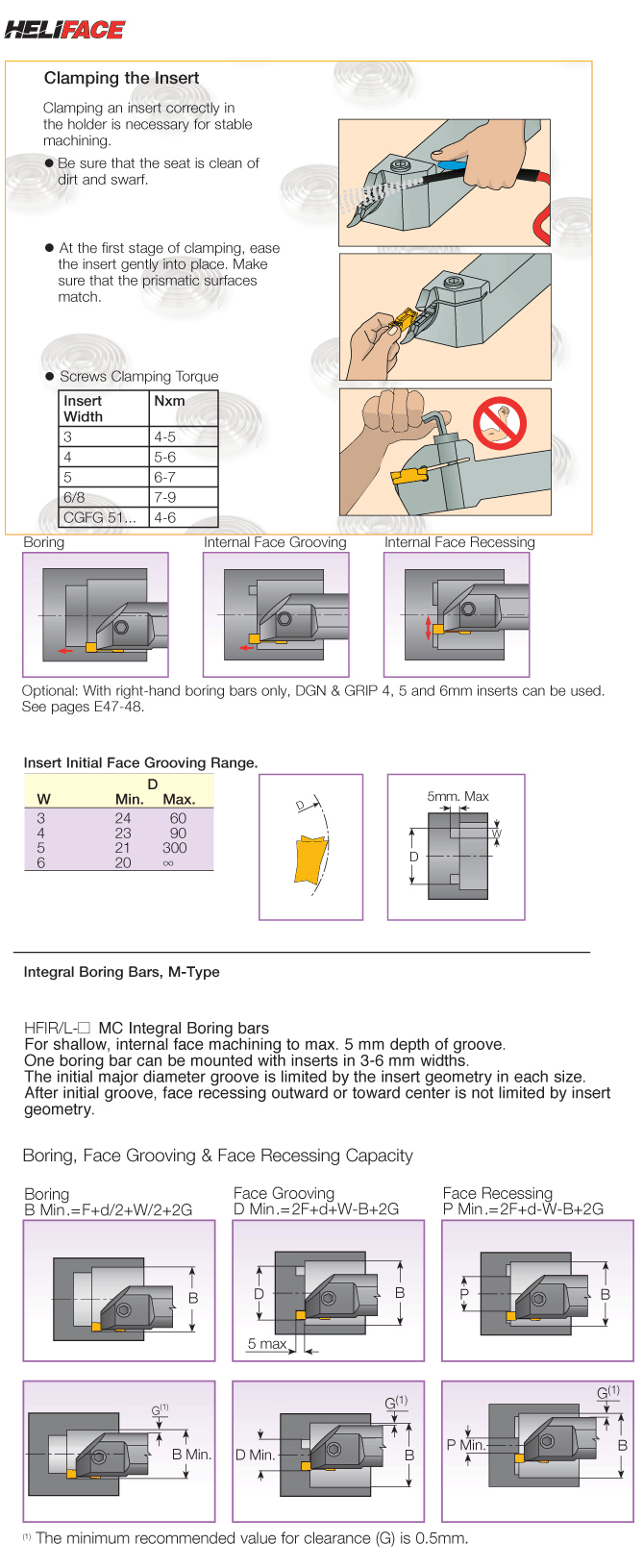

| 备注 | 刀片装夹说明，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
2.4780
名字
Groove/Turn Indexable Holders
系列名称
HFIR/L-MC
品牌
Iscar
