产品规格

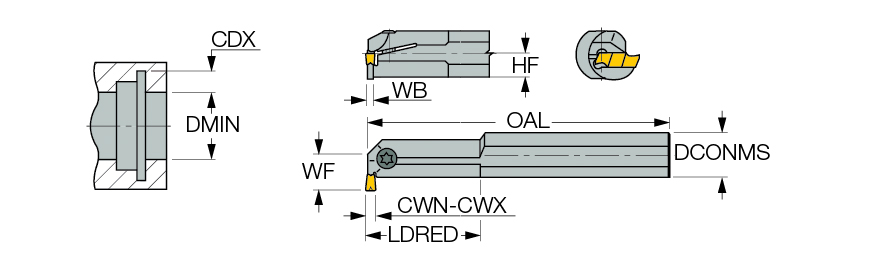

| Cutting Width Minimum (CWN) | 2 mm | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Width Maximum (CWX) | 3.5 mm | 应用 | | 内孔仿形加工 | 内孔切槽 & 车削 | 内孔切槽加工 | 内孔螺纹加工 | |
| Cutting Depth Maximum (CDX) | 4.5 mm | 刀体材质 | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 14.5 mm | 测量方式 | Metric |
| Head Length (LH) | 40 mm | 单位 | M |
| Overall Length (OAL) | 200 mm |
产品特性
| 系列描述 | Internal grooving and turning bars. | 系列名称 | GHIR/L (W 1.9-6.4) |
| 备注 | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.4800
名字
Groove/Turn Indexable Holders
系列名称
GHIR/L (W 1.9-6.4)
品牌
Iscar
