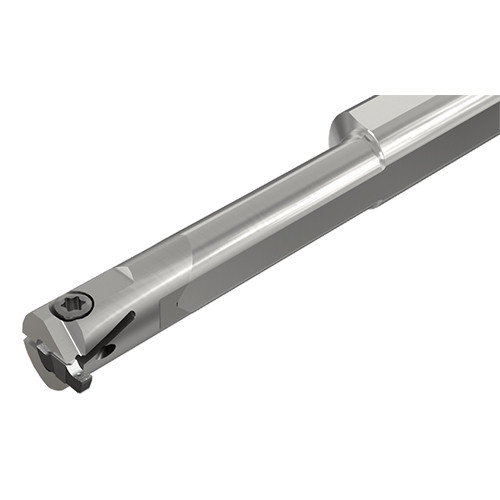

GEHIMR 15.9SC-14
Internal machining of carbide bars with coolant holes. Using GEMI and GEPI inserts in widths smaller than .075″ (the insert is not fully supported).
Price: Log in For Price
产品规格

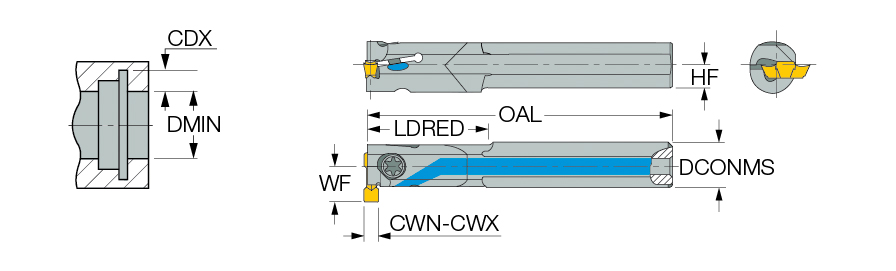

| Cutting Width Minimum (CWN) | 0.031″ | Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Cutting Width Maximum (CWX) | 0.075″ | 应用 | | 内孔仿形加工 | 内孔切槽 & 车削 | 内孔切槽加工 | 内孔螺纹加工 | |
| Cutting Depth Maximum (CDX) | 0.098″ | 刀体材质 | Steel |
| Minimum Bore Diameter (DMIN) | 0.551″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.43″ | 测量方式 | Inch |
| Head Length (LH) | 2-1/2″ | 单位 | I |
| Overall Length (OAL) | 6″ |
产品特性
| 系列描述 | Internal machining of carbide bars with coolant holes. Using GEMI and GEPI inserts in widths smaller than .075″ (the insert is not fully supported). | 系列名称 | GEHIMR/L-SC |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.6702
名字
Groove/Turn Indexable Holders
系列名称
GEHIMR/L-SC
品牌
Iscar
