产品规格

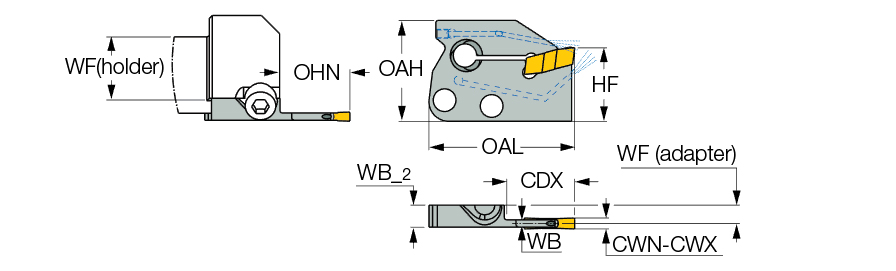

| Cutting Width Minimum (CWN) | 2.8 mm | 应用 | | 切断加工 | 外圆仿形车削 切槽加工 | 外圆切槽 & 车削 | 外圆切槽加工 | 外圆螺纹加工切槽车削 T | 皮带轮V型槽切槽加工 | |
| Cutting Width Maximum (CWX) | 4 mm | 刀体材质 | Steel |
| Cutting Depth Maximum (CDX) | 16 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 6 mm | 测量方式 | Metric |
| Overall Length (OAL) | 42 mm | 单位 | M |
产品特性

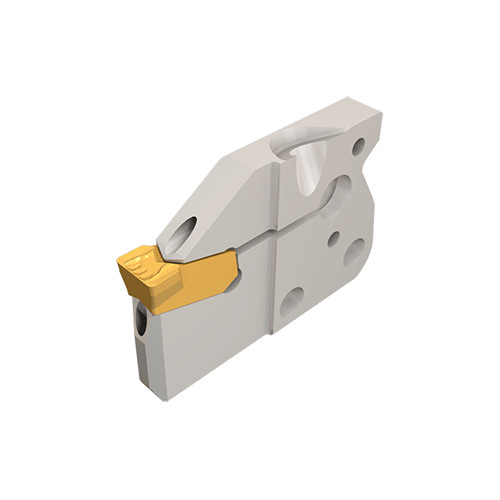

| 系列描述 | MODULAR-GRIP模块式刀夹带高压冷却通道，夹持CUT-GRIP刀片 | 系列名称 | CGPAD-JHP |
| 备注 | 夹持TIP刀片时，需修磨刀片定位槽预留安全间隙 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0440
名字
Groove/Turn Indexable Holders
系列名称
CGPAD-JHP
品牌
Iscar
Related Documentation
SR14-519-supplied screw in the attached plastic bag for GAD, GAM, DGAD, HGAD and PCADR/L adapters. SR M6X20-XT-supplied screws with the tools in the plastic bag for CGPAD, HGPAD, TGPAD and FGPAD adapters. Sealing Screw used to prevent chips from entering the upper locking screw hole of adapter above.
