产品规格

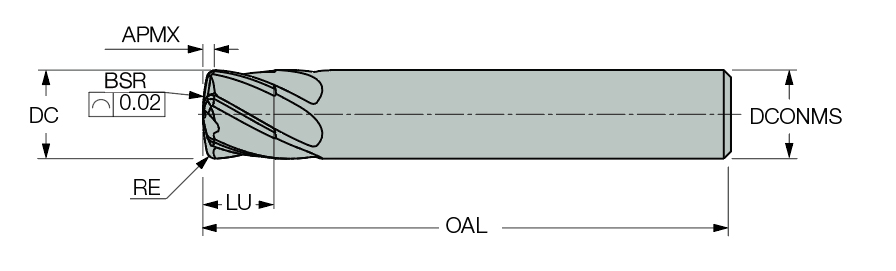

| Cutting Diameter (DC) | 8 mm | 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | 应用 | | 仿形铣 | |
| Depth of Cut Maximum (APMX) | 1.1 mm | Corner Radius (RE) | 0.75 mm |
| Overall Length (OAL) | 63 mm | 等级 | IC902 |
| 切削刃材质 | Carbide | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| 涂层 | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| 柄部形式 | Round | 刀体材质 | Carbide |
| 端部形状 | Corner Radius | 测量方式 | Metric |
| Usable Length (LU) | 5 mm | 单位 | M |
产品特性

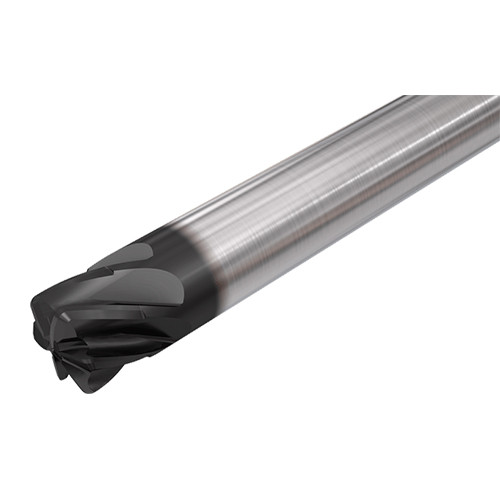

| 系列描述 | 整体硬质合金铣刀，透镜形状（鼓形），用于3D仿形铣削加工。适用于半精铣及精铣加工。 | 系列名称 | ELB |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.0520
名字
Square & Corner Radius End Mills
系列名称
ELB
品牌
Iscar
