产品规格

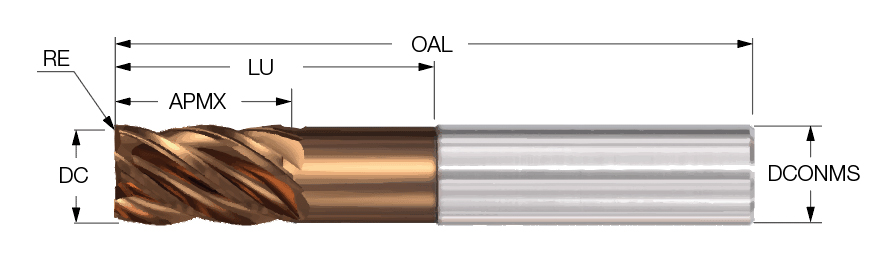

| Cutting Diameter (DC) | 0.313″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | 等级 | IC608 |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 2″ | Maximum Feed per Tooth (fz(max)) | 0.0021 ″/tooth |
| 切削刃材质 | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0008 ″/tooth |
| 涂层 | AlTiCrSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | 刀体材质 | Carbide |
| 柄部形式 | Round | 十进制 | 0.313″ |
| 端部形状 | Corner Radius | 测量方式 | Inch |
| Usable Length (LU) | 1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | Shank Diameter Tolerance (TCDMM) | h6 |
| 应用 | | 坡走铣 | 插铣 & 开凹槽 | 方肩铣 | 槽铣加工 | 螺旋插补铣 | | 单位 | I |
| Corner Radius (RE) | 0.015″ |
产品特性

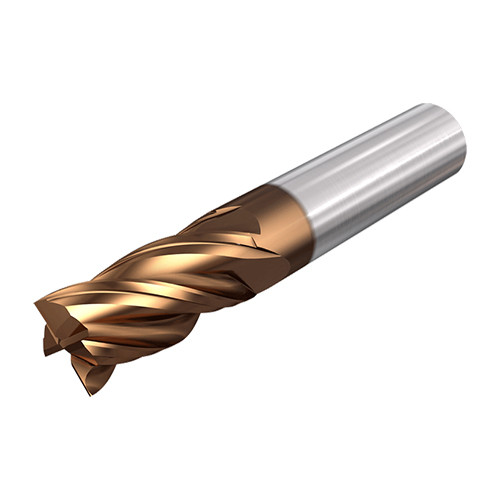

| 系列描述 | 4齿，带缩颈及不带缩颈，刀尖圆角半径尺寸多样，不等螺旋角的防振降噪立铣刀 | 系列名称 | ECI-4-VF |
| 备注 | Each item is also available with a Weldon shank. Substitute a W in p place of the C in the listed designations (example: ECI-4 375-1.0C03VF2.5 = cylindrical type; ECI-4 375-1.0W03VF2.5 = Weldon type) | 品牌 | Iscar |
| COO | USA |
Shipping Info
名字
Square & Corner Radius End Mills
系列名称
ECI-4-VF
品牌
Iscar
