ECAI-B3 1-3CR0-6EC IC1508

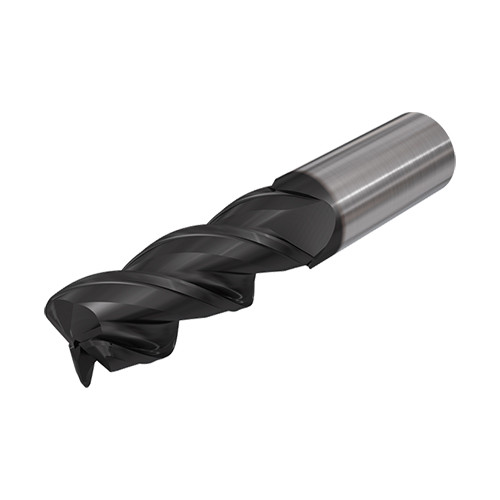

DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials.
Price: Log in For Price
产品规格

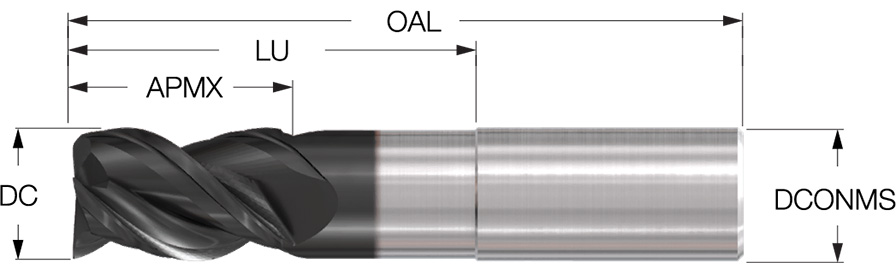

| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 0″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 3″ | 等级 | IC1508 |
| Overall Length (OAL) | 6″ | Tool Type | Solid carbide center cutting endmills 90° |
| 切削刃材质 | Carbide | Maximum Feed per Tooth (fz(max)) | 0.01 ″/tooth |
| 涂层 | DLC | Minimum Feed per Tooth (fz(min)) | 0.004 ″/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| 柄部形式 | Round | 刀体材质 | Carbide |
| 端部形状 | Corner Radius | 十进制 | 1″ |
| Usable Length (LU) | 3″ | 测量方式 | Inch |
| 适用材料 | | 黑色金属 | | 单位 | I |
| 应用 | | 坡走铣 | 插铣 & 开凹槽 | 方肩铣 | 槽铣加工 | 沉孔铣削 | 螺旋插补铣 | 钻铣 | |
产品特性
| 系列描述 | DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials. | 系列名称 | ECAI-B3-EC |
| COO | USA | 品牌 | Iscar |
Shipping Info
名字
Square & Corner Radius End Mills
系列名称
ECAI-B3-EC
品牌
Iscar
