EPX-F8 12-24C12F83 IC02

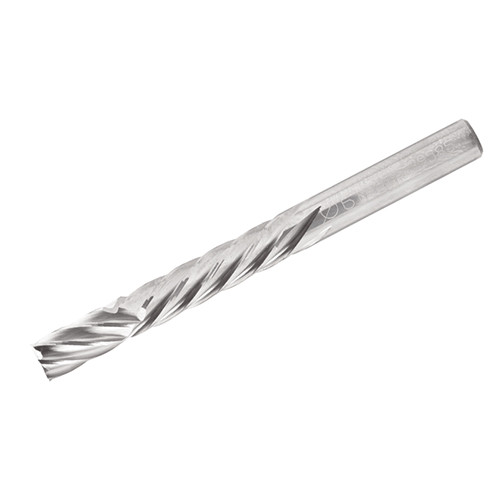

带右手及左手螺旋角的整体硬质合金立铣刀，在切削加工的中间高度位置切削刃螺旋角改变方向，用于加工不同种类的层压复合材料。
Price: Log in For Price
产品规格

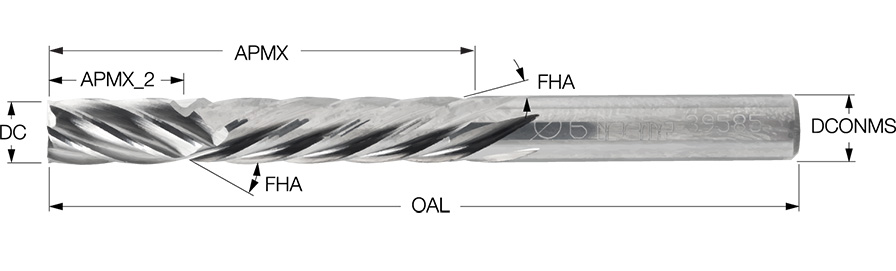

| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 10.6 mm | 等级 | IC02 |
| Overall Length (OAL) | 83 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| 切削刃材质 | Carbide | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| 涂层 | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Flute Count (NOF) | 8 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | 刀体材质 | Carbide |
| 柄部形式 | Round | 测量方式 | Metric |
| 端部形状 | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 10.6 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| 适用材料 | | 黑色金属 | | Cutting Diameter Tolerance | e8 |
| 应用 | | 复合材料铣削 | 方肩铣 | | 单位 | M |
产品特性
| 系列描述 | 带右手及左手螺旋角的整体硬质合金立铣刀，在切削加工的中间高度位置切削刃螺旋角改变方向，用于加工不同种类的层压复合材料。 | 系列名称 | EPX |

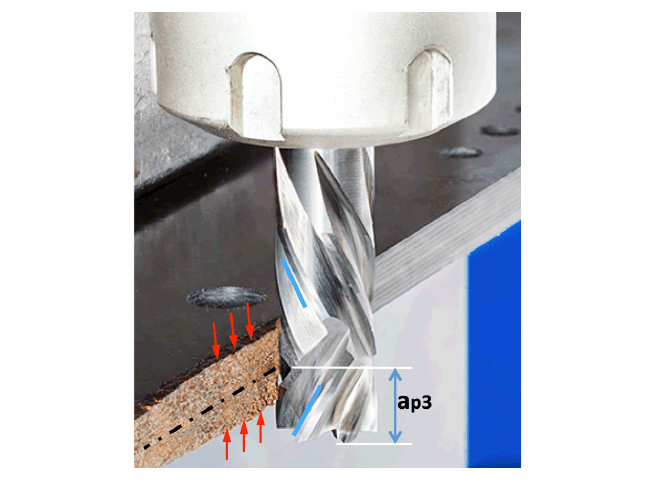

| 备注 | Important: For best results, the intersection of the alternating flute directions (APMX_2) should be positioned in the middle of the workpiece height Coated tools available on request | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1300
名字
Square & Corner Radius End Mills
系列名称
EPX
品牌
Iscar
