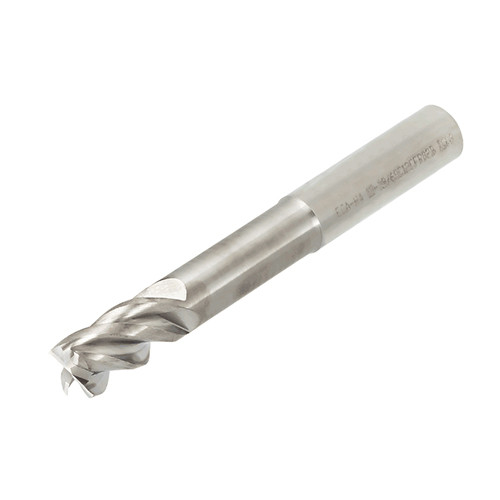

ECAI-H4R 625-937/3.1C01CF IC08
CHATTERFREE, 4 flute solid carbide endmills with 39-41 different helix, 3, 4 and 5xD neck relief for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing.
Price: Log in For Price
产品规格

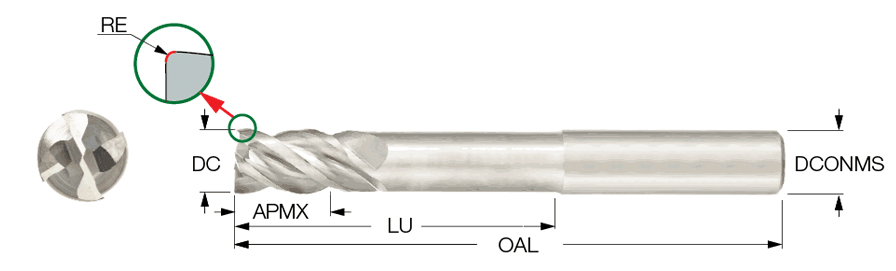

| Cutting Diameter (DC) | 5/8″ | 等级 | IC08 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Neck Diameter (DN) | 0.61″ |
| Depth of Cut Maximum (APMX) | 0.937″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 5″ | Tool Type | Solid carbide center cutting endmills 90° |
| 切削刃材质 | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0055 ″/tooth |
| 涂层 | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 40 Degrees | 刀体材质 | Carbide |
| 柄部形式 | Round | 十进制 | 0.625″ |
| 端部形状 | Corner Radius | 测量方式 | Inch |
| Usable Length (LU) | 3.1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| 适用材料 | | 黑色金属 | | Shank Diameter Tolerance (TCDMM) | h6 |
| 应用 | | 坡走铣 | 方肩铣 | 槽铣加工 | 螺旋插补铣 | | Cutting Diameter Tolerance | h6 |
| Corner Radius (RE) | 0.01″ | 单位 | I |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
产品特性
| 系列描述 | CHATTERFREE, 4 flute solid carbide endmills with 39-41 different helix, 3, 4 and 5xD neck relief for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing. | 系列名称 | ECAI-H4R-CF |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.7518
名字
Square & Corner Radius End Mills
系列名称
ECAI-H4R-CF
品牌
Iscar
