产品规格
| 应用 | | T型槽 | 侧向开槽 | 内孔槽铣削 | | 等级 | IC908 |

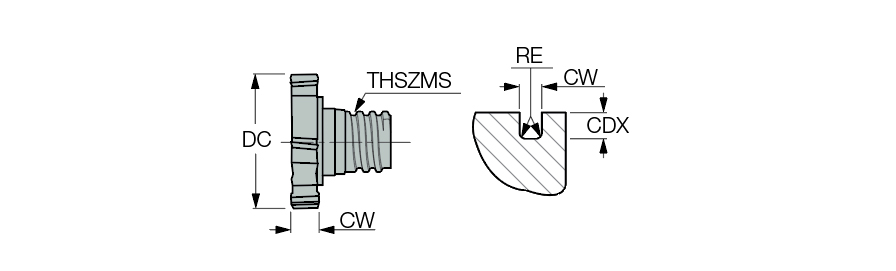

| Cutting Diameter (DC) | 25 mm | 涂层 | TiAlN |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 | 测量方式 | Metric |
| Corner Radius (RE) | 0.4 mm | 切削刃材质 | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Tool Type | Solid "T" slot cutters |
| Cutting Depth Maximum (CDX) | 4.3 mm | 刀体材质 | Carbide |
| Cutting Width (CW) | 5 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 16.9 mm | 单位 | M |
产品特性

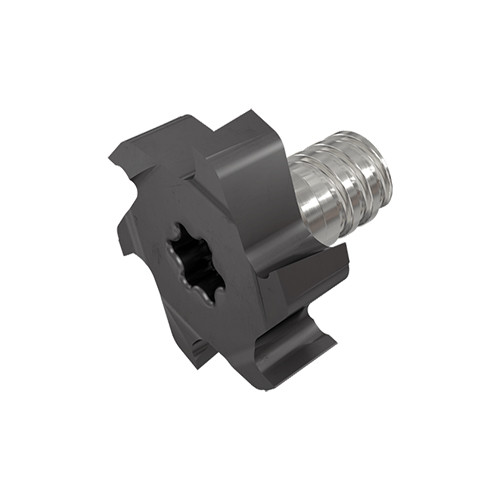

| 系列描述 | 可换式变形金刚T-型槽铣刀头，带不同刀尖圆角半径 | 系列名称 | MM TS-H |

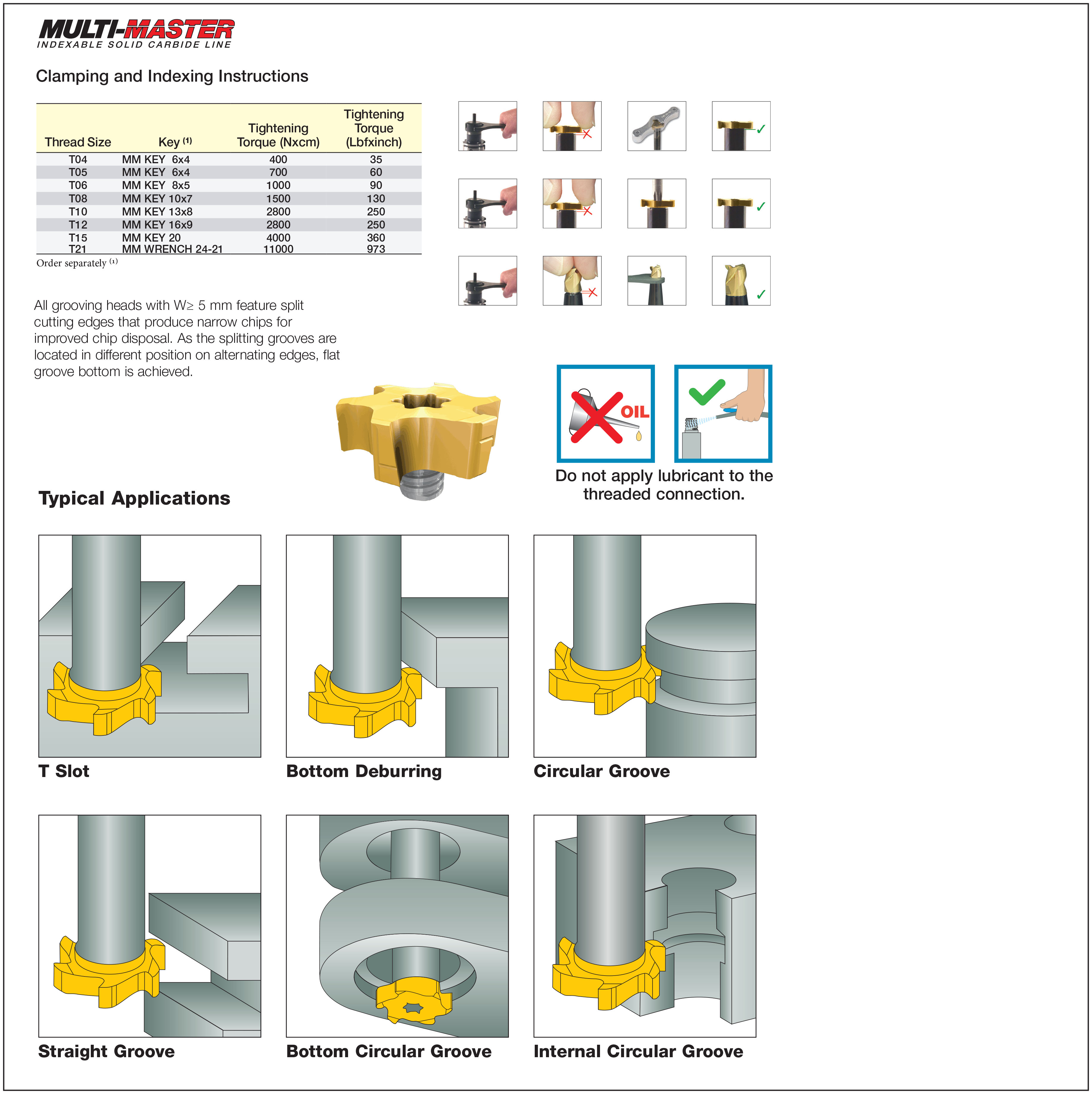

| 备注 | Inserts in 5 mm and wider feature chip splitting edges For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0390
名字
Solid End Mill Heads
系列名称
MM TS-H
品牌
Iscar
