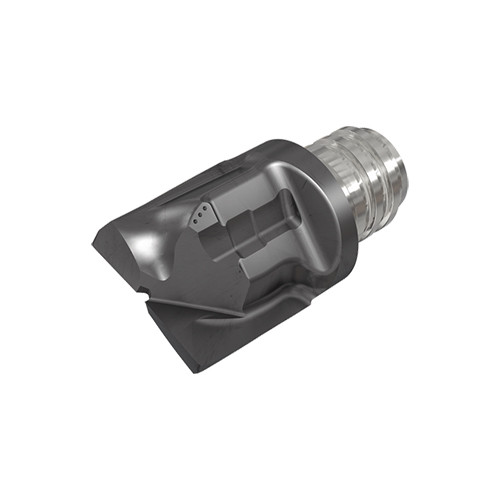

MM HC.375C38R016-2T06 IC908
可换式变形金刚铣刀头，带两个10°螺旋角有效齿，用于钻铣、槽铣及铣削加工。经济型刀头带不同刀尖圆角半径。
Price: Log in For Price

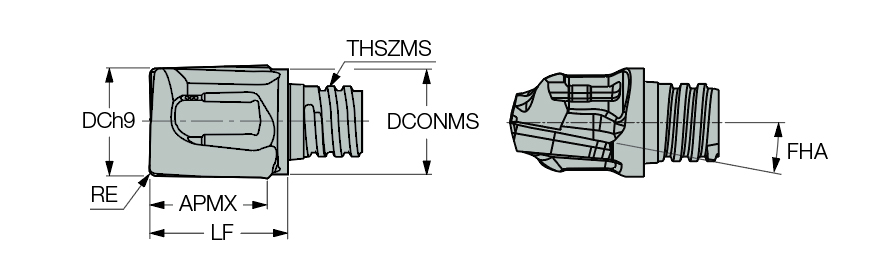

产品规格
| 应用 | | 坡走铣 | 插铣 & 开凹槽 | 方肩铣 | 槽铣加工 | 螺旋插补铣 | 钻铣 | | 等级 | IC908 |
| Cutting Diameter (DC) | 3/8″ | 涂层 | TiAlN |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 2 | 测量方式 | Inch |
| Corner Radius (RE) | 0.016″ | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | 切削刃材质 | Carbide |
| Cutting Diameter Maximum (DCX) | 0″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.38″ | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 0.36″ | 刀体材质 | Carbide |
| Functional Length (LF) | 0.485″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 10 Degrees | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Overall Length (OAL) | 0.747″ | 单位 | I |
产品特性
| 系列描述 | 可换式变形金刚铣刀头，带两个10°螺旋角有效齿，用于钻铣、槽铣及铣削加工。经济型刀头带不同刀尖圆角半径。 | 系列名称 | MM HC |

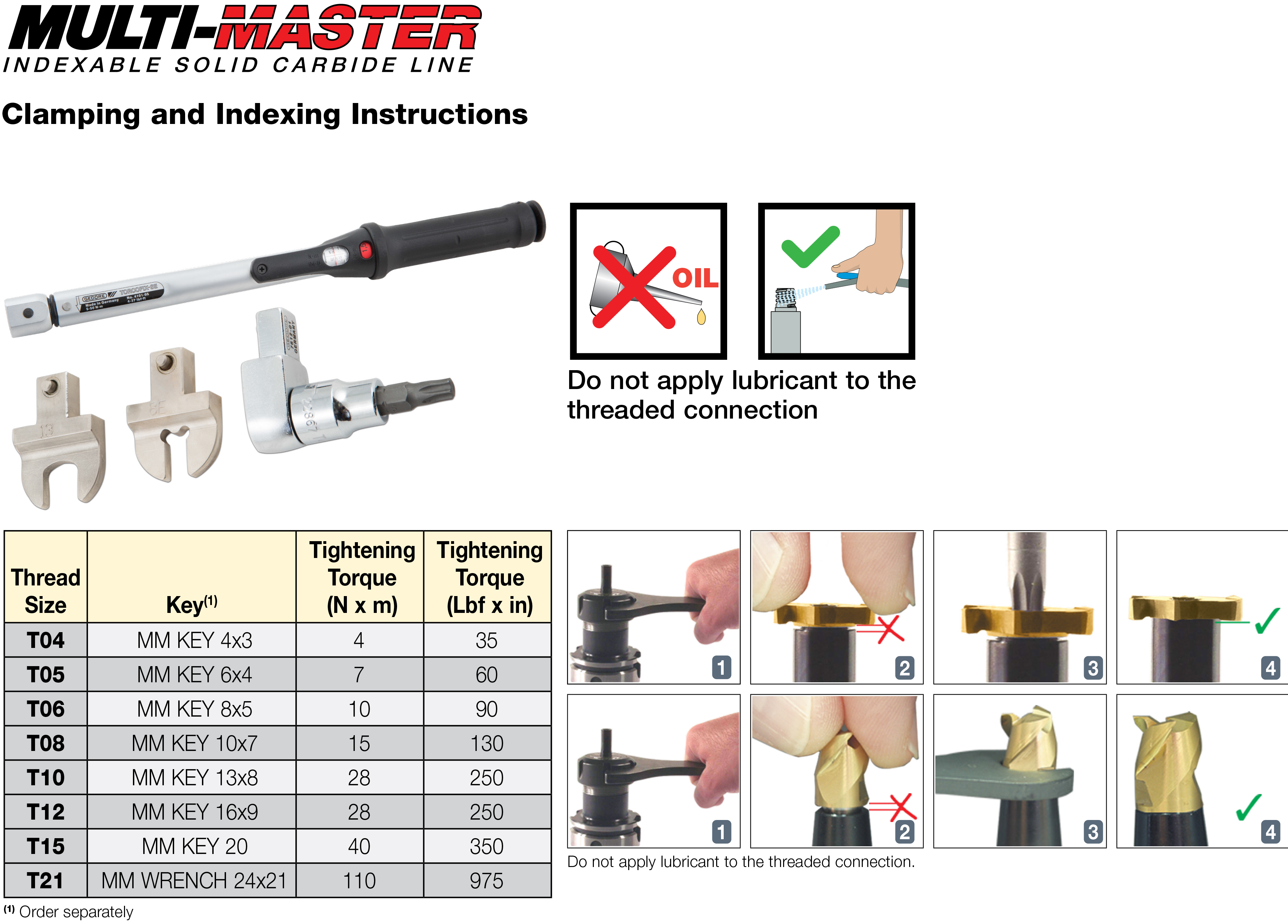

| 备注 | For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0397
名字
Solid End Mill Heads
系列名称
MM HC
品牌
Iscar
