产品规格

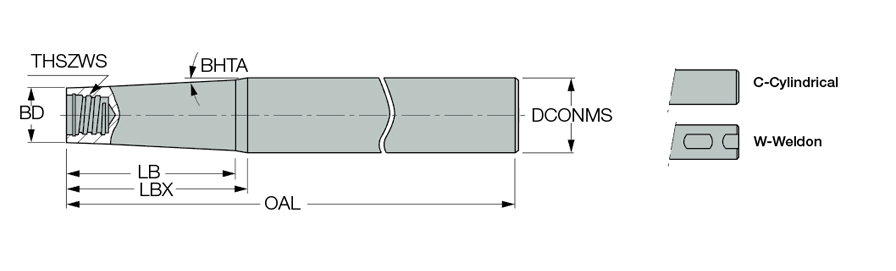

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Functional Length (LF) | 125 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | 测量方式 | Metric |
| Overall Length (OAL) | 125 mm | Rotational Speed Maximum (RPMX) | 41280 Rev/min |
| Body Length Maximum (LBX) | 31.7 mm | 刀体材质 | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 9.6 mm | 单位 | M |
| Body Length (LB) | 31.5 mm |
产品特性
| 系列描述 | 圆柱柄85°锥颈变形金刚刀杆，用于夹持变形金刚铣刀头 | 系列名称 | MM S-B (85° conical shanks) |
| 备注 | For adaptation click on More Info Do not apply lubricant to the threaded connection | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.2020
名字
Solid End Mill Shanks
系列名称
MM S-B (85° conical shanks)
品牌
Iscar
