产品规格

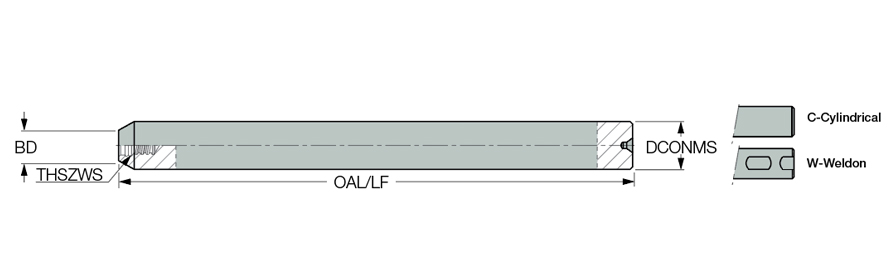

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Rotational Speed Maximum (RPMX) | 11970 Rev/min |
| Overall Length (OAL) | 200 mm | 刀体材质 | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 9.6 mm | 单位 | M |
| Functional Length (LF) | 200 mm |
产品特性
| 系列描述 | 变形金刚刀杆（MULTI-MASTER)，用于夹持变形金刚铣刀头 | 系列名称 | MM S-A (straight shanks) |
| 备注 | For adaptation click on More Info Do not apply lubricant to the threaded connection Safe-Lock® by Haimer, helical grooves that prevent pull-out (available upon request) | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.3430
名字
Solid End Mill Shanks
系列名称
MM S-A (straight shanks)
品牌
Iscar
