产品规格

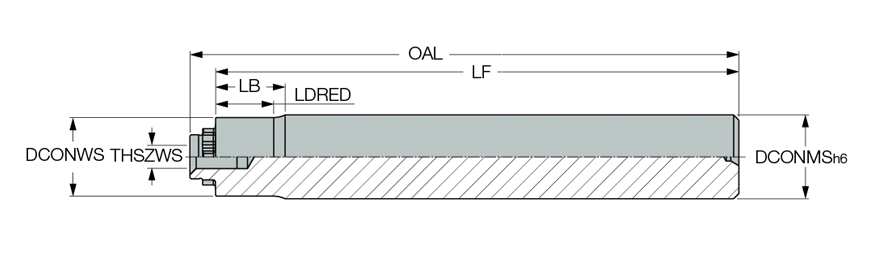

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M5x0.5 | Body Diameter (BD) | 0.591″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Length (LB) | 0.63″ |
| Overall Length (OAL) | 7.192″ | 测量方式 | Inch |
| Body Length Maximum (LBX) | 0.72″ | 刀体材质 | Steel |
| Tool Type | Cylindrical Shanks | 单位 | I |
产品特性

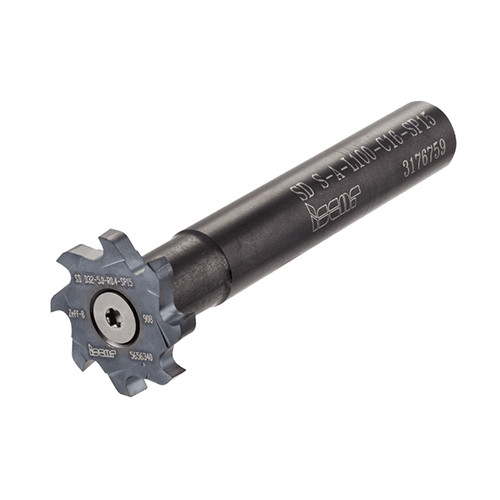

| 系列描述 | 圆柱柄直颈刀杆，用于夹持可换式硬质合金铣刀头 | 系列名称 | SD S-A-SP |

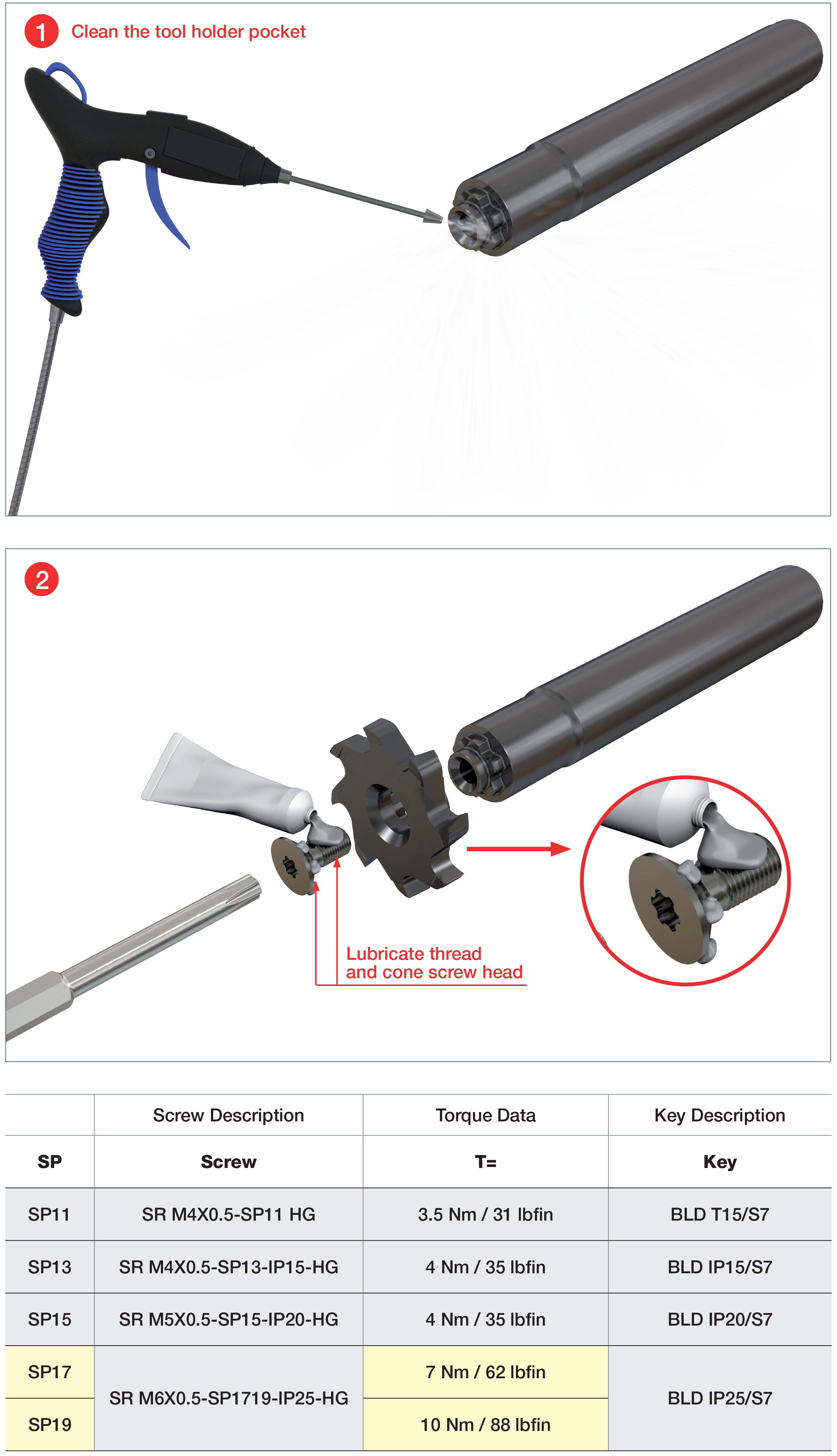

| 备注 | Apply lubricant to the SR M5X0.5-SP15 screw | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.2787
名字
Solid End Mill Shanks
系列名称
SD S-A-SP
品牌
Iscar
