产品规格

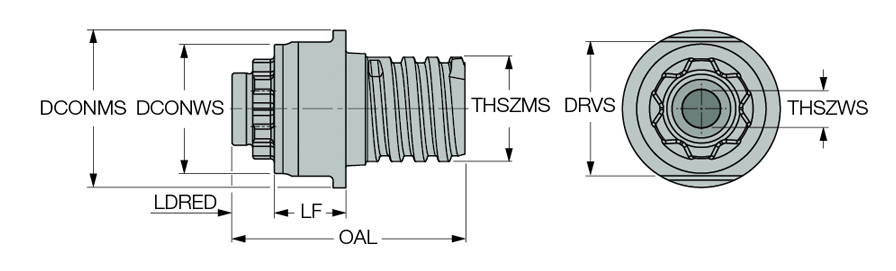

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6x0.5 | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Connection Diameter Machine Side (DCONMS) | 23.9 mm | Drive Size (DRVS) | 20 mm |
| Overall Length (OAL) | 39.5 mm | 测量方式 | Metric |
| Body Length Maximum (LBX) | 8.5 mm | 刀体材质 | Steel |
| Tool Type | Interchangeable Milling Connectors | 单位 | M |
| Body Diameter (BD) | 19 mm |
产品特性

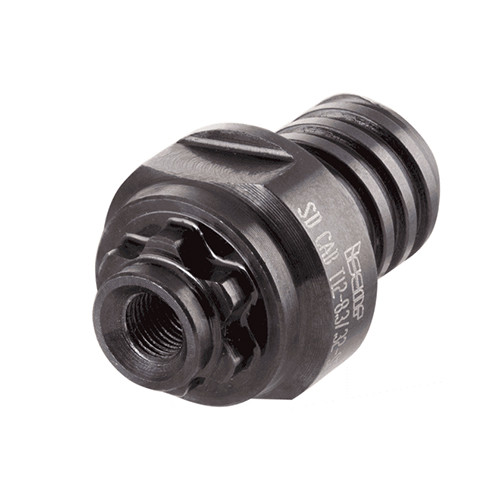

| 系列描述 | 转换柄，用于连接带SD花键接口的T-型槽铣刀头与变形金刚刀杆 | 系列名称 | SD CAB |

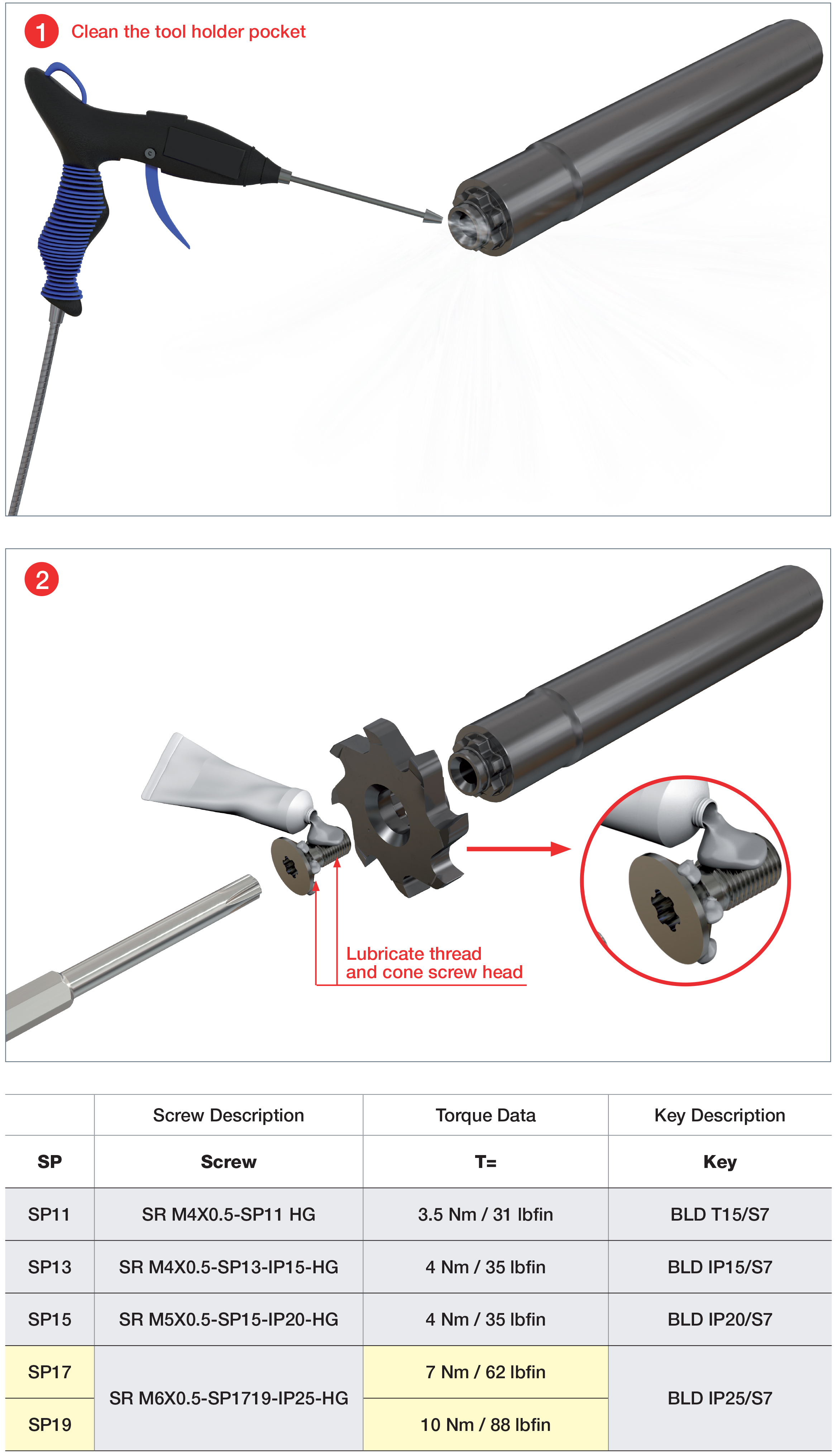

| 备注 | Note: Apply lubricant to the MULTI-MASTER threaded connection and to the slotting head clamping screw | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1860
名字
Solid End Mill Shanks
系列名称
SD CAB
品牌
Iscar
