产品规格

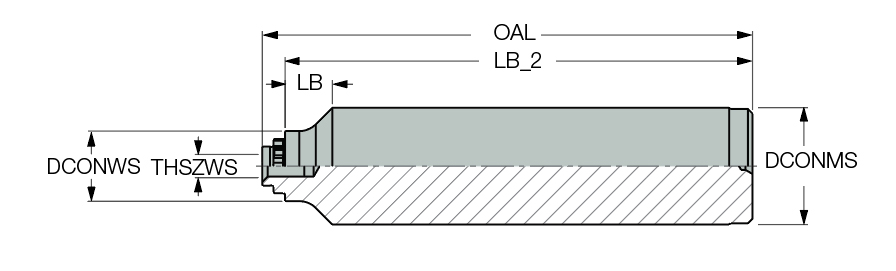

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6x0.5 | 测量方式 | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | 刀体材质 | Steel |
| Overall Length (OAL) | 5.236″ | Connection Code Machine Side (CCMS) | Weldon |
| Body Length (LB) | 0.492″ | 单位 | I |
| Functional Length (LF) | 4.095″ |
产品特性
| 系列描述 | 圆柱柄直颈刀杆，用于夹持可换式硬质合金面铣刀头 | 系列名称 | SD FM-S-A-SP |
| 备注 | Apply lubricant to the clamping screw | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.8850
名字

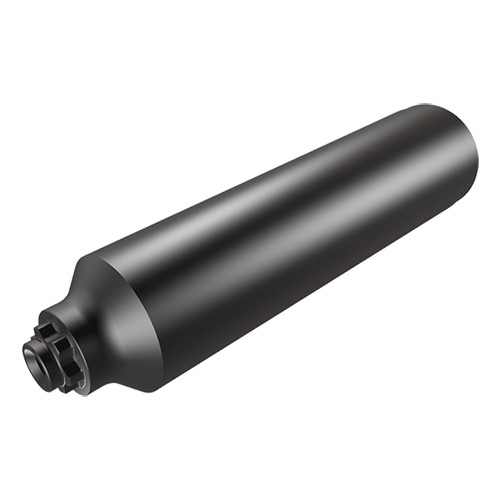

Solid End Mill Shanks
系列名称
SD FM-S-A-SP
品牌
Iscar
