MM S-A-L50/20-C625T10C-CH
圆柱柄带直颈变形金刚刀杆，用于夹持变形金刚铣刀头。提供钢质、硬质合金以及钨合金材质的刀杆。钨合金刀杆带内冷却通孔。
Price: Log in For Price
产品规格

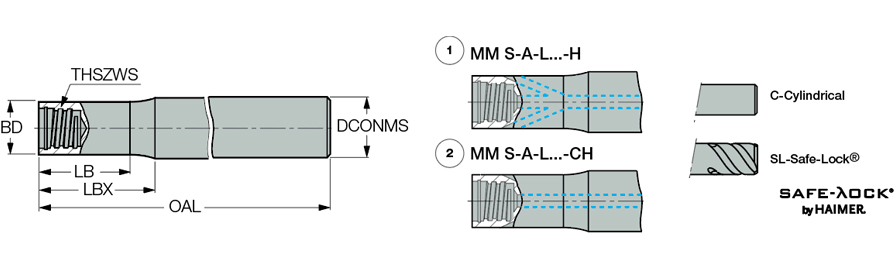

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T10 | Body Length (LB) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | 测量方式 | Inch |
| Overall Length (OAL) | 5″ | Rotational Speed Maximum (RPMX) | 35730 Rev/min |
| Body Length Maximum (LBX) | 2.09″ | 刀体材质 | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 0.602″ | 单位 | I |
产品特性
| 系列描述 | 圆柱柄带直颈变形金刚刀杆，用于夹持变形金刚铣刀头。提供钢质、硬质合金以及钨合金材质的刀杆。钨合金刀杆带内冷却通孔。 | 系列名称 | MM S-A (stepped shanks) |
| 备注 | For adaptation click on More Info Do not apply lubricant to the threaded connection Safe-Lock® by Haimer, helical grooves that prevent pull-out (available upon request) | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.7143
名字
Solid End Mill Shanks
系列名称
MM S-A (stepped shanks)
品牌
Iscar
