产品规格

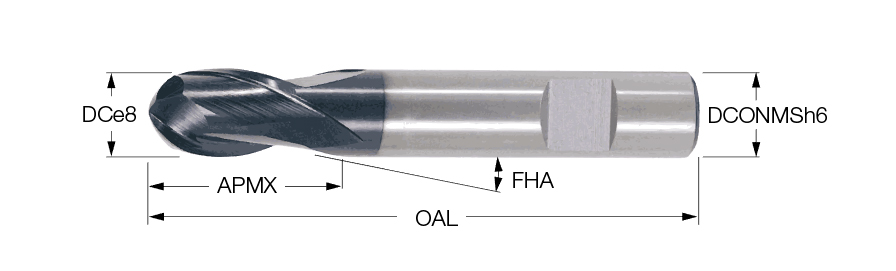

| Cutting Diameter (DC) | 1 mm | Corner Radius (RE) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 2.5 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.01 mm |
| Overall Length (OAL) | 47 mm | 等级 | MPC |
| 切削刃材质 | HSS | Tool Type | Solid ball nose |
| 涂层 | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | 刀体材质 | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | 测量方式 | Metric |
| 柄部形式 | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| 应用 | | 仿形铣 | | 单位 | M |
产品特性
| 系列描述 | 2刃，30°螺旋角短型高速钢球头铣刀 | 系列名称 | EBH-A2-HS (HSS) |
| COO | Korea | 品牌 | Iscar |
Shipping Info
包装重量
0.0110
名字
Ballnose End Mills
系列名称
EBH-A2-HS (HSS)
品牌
Iscar
