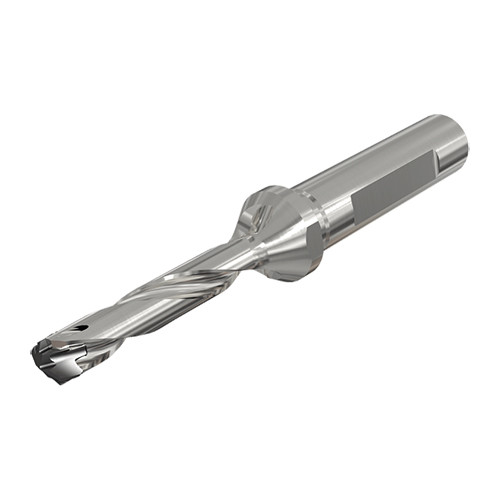

DCN 0709-354-100A-5D
单平面削平柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深5XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。
Price: Log in For Price

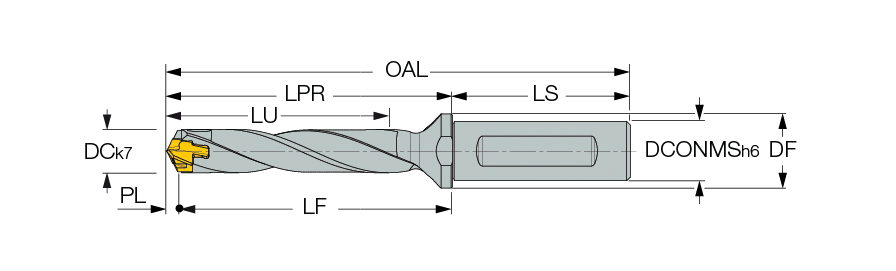

产品规格
| Cutting Diameter (DC) | 0.709″ | Shank Length (LS) | 2.2″ |
| Usable Length (LU) | 3.651″ | Coolant Supply Property (CSP) | Coolant Thru |
| 柄部形式 | Weldon | 测量方式 | Inch |
| 应用 | | 钻削 | | Master Insert Identification (MIID) | ICP 180 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.107″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | 刀体材质 | Steel |
| Insert Seat Size Code (SSC) | 18.0 | Flange Diameter (DF) | 1.26″ |
| Cutting Diameter Minimum (DCN) | 0.709″ | 十进制 | 0.709″ |
| Cutting Diameter Maximum (DCX) | 0.747″ | Body Diameter Reduced (BDRED) | 1.26″ |
| Protruding Length (LPR) | 4.67″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 4.541″ | 单位 | I |
| Overall Length (OAL) | 6.87″ |
产品特性
| 系列描述 | 单平面削平柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深5XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。 | COO | Israel |
| 备注 | 在采用12倍径钻头钻削前，推荐采用1.5倍径的DCN钻头或中心钻加工出预钻孔。但装夹HCP刀头时则无需加工预钻孔。 |
Shipping Info
包装重量
0.8929
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
