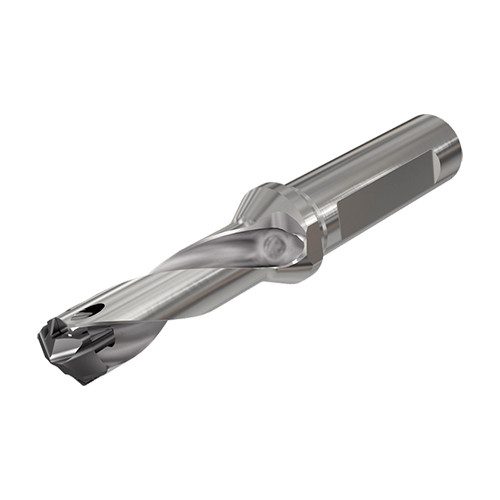

DCN 0571-171-063A-3D
单平面削平柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深3XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。
Price: Log in For Price
产品规格

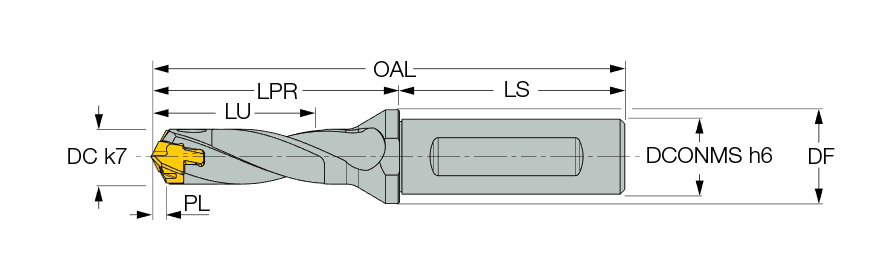

| Cutting Diameter (DC) | 0.571″ | Shank Length (LS) | 1.89″ |
| Usable Length (LU) | 1.8″ | Coolant Supply Property (CSP) | Coolant Thru |
| 柄部形式 | Weldon | 测量方式 | Inch |
| 应用 | | 钻削 | | Master Insert Identification (MIID) | ICP 145 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.087″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | 刀体材质 | Steel |
| Insert Seat Size Code (SSC) | 14.0 | Flange Diameter (DF) | 0.79″ |
| Cutting Diameter Minimum (DCN) | 0.571″ | 十进制 | 0.571″ |
| Cutting Diameter Maximum (DCX) | 0.59″ | Body Diameter Reduced (BDRED) | 0.79″ |
| Protruding Length (LPR) | 2.51″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 2.406″ | 单位 | I |
| Overall Length (OAL) | 4.4″ |
产品特性
| 系列描述 | 单平面削平柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深3XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。 | COO | Israel |
| 备注 | 禁止使用小于钻杆卡口尺寸的钻头进行安装 |
Shipping Info
包装重量
0.3461
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
