产品规格

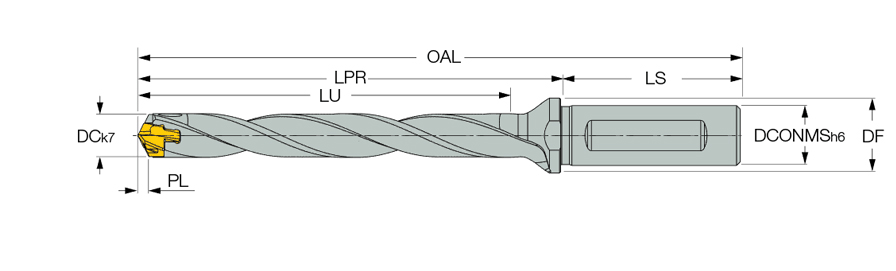

| Cutting Diameter (DC) | 18 mm | Overall Length (OAL) | 228.5 mm |
| Usable Length (LU) | 146.73 mm | Shank Length (LS) | 56 mm |
| 柄部形式 | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| 应用 | | 钻削 | | 测量方式 | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 180 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 2.73 mm |
| Insert Seat Size Code (SSC) | 18.0 | 刀体材质 | Steel |
| Cutting Diameter Minimum (DCN) | 18 mm | Flange Diameter (DF) | 32 mm |
| Cutting Diameter Maximum (DCX) | 18.99 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 172.5 mm | 单位 | M |
| Functional Length (LF) | 169.22 mm |
产品特性

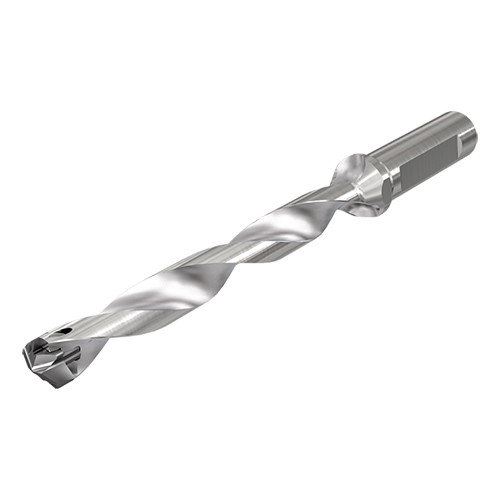

| 系列描述 | 单平面削平柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深8XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。 | COO | Israel |
| 备注 | 在采用8倍径钻头钻削前，推荐采用1.5倍径的DCN钻头或中心钻加工出预钻孔。但装夹HCP或QCP刀头时则无需加工预钻孔。 |
Shipping Info
包装重量
0.4530
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
