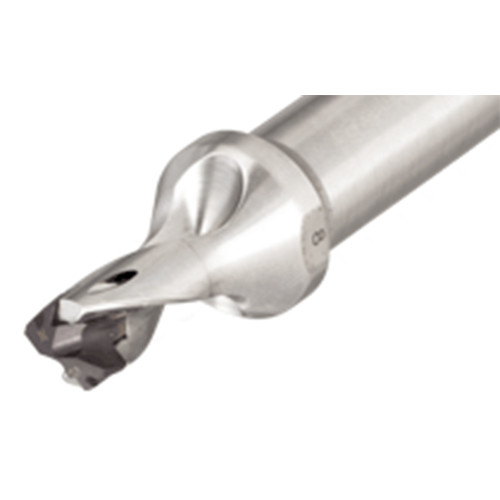

DCN 100-015-16R-1.5D
圆柱柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深1.5XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。
Price: Log in For Price
产品规格

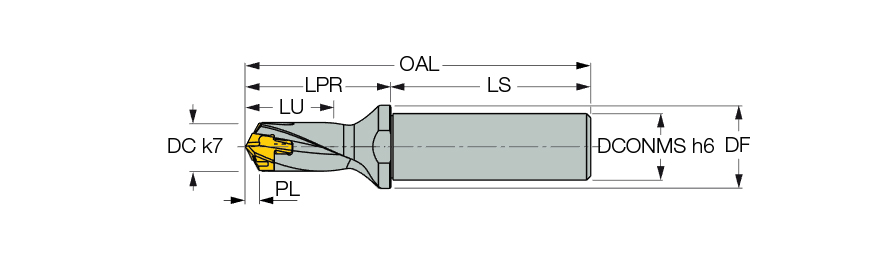

| Cutting Diameter (DC) | 10 mm | Overall Length (OAL) | 79.2 mm |
| Usable Length (LU) | 16.5 mm | Shank Length (LS) | 48 mm |
| 柄部形式 | Round | Coolant Supply Property (CSP) | Coolant Thru |
| 应用 | | 钻削 | | 测量方式 | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 100 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Point Length (PL) | 1.5 mm |
| Insert Seat Size Code (SSC) | 10.0 | 刀体材质 | Steel |
| Cutting Diameter Minimum (DCN) | 10 mm | Flange Diameter (DF) | 20 mm |
| Cutting Diameter Maximum (DCX) | 10.49 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 31.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 29.38 mm | 单位 | M |
产品特性
| 系列描述 | 圆柱柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深1.5XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。 | COO | Israel |
| 备注 | 在采用12倍径钻头钻削前，推荐采用1.5倍径的DCN钻头或中心钻加工出预钻孔。但装夹HCP刀头时则无需加工预钻孔。 |
Shipping Info
包装重量
0.1300
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
