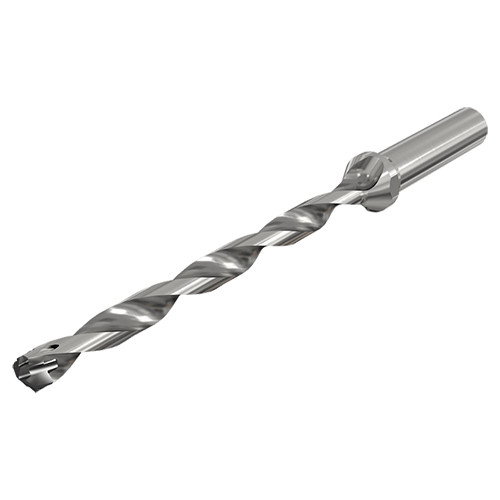

DCN 0591-709-075R-12D
圆柱柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深12XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。
Price: Log in For Price
产品规格

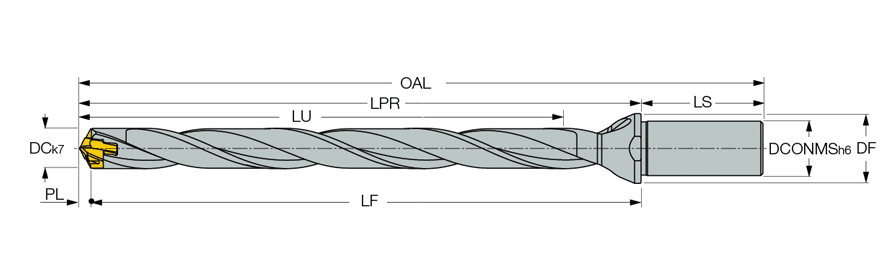

| Cutting Diameter (DC) | 0.591″ | Shank Length (LS) | 1.97″ |
| Usable Length (LU) | 7.176″ | Coolant Supply Property (CSP) | Coolant Thru |
| 柄部形式 | Round | 测量方式 | Inch |
| 应用 | | 钻削 | | Master Insert Identification (MIID) | ICP 150 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.089″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | 刀体材质 | Steel |
| Insert Seat Size Code (SSC) | 15.0 | Flange Diameter (DF) | 0.984″ |
| Cutting Diameter Minimum (DCN) | 0.591″ | 十进制 | 0.591″ |
| Cutting Diameter Maximum (DCX) | 0.629″ | Body Diameter Reduced (BDRED) | 0.984″ |
| Protruding Length (LPR) | 8.02″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 7.913″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 9.99″ | 单位 | I |
产品特性
| 系列描述 | 圆柱柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深12XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。 | COO | Israel |
| 备注 | 使用12XD钻头，推荐先用DCN 1.5XD钻头或中心钻钻预钻孔 使用HCP或QCP钻头可以取消预钻孔 禁止使用小于钻杆卡口尺寸的钻头进行安装 |
Shipping Info
包装重量
0.7033
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
