产品规格

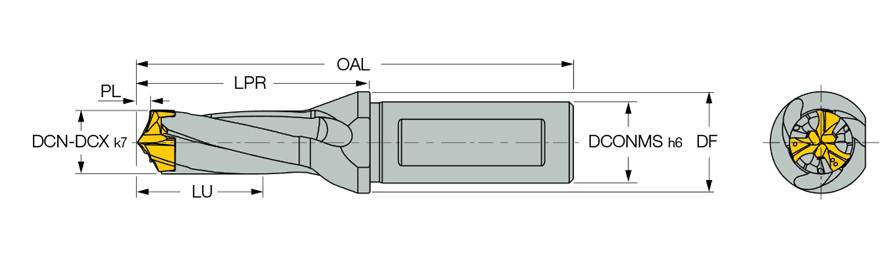

| Cutting Diameter (DC) | 0.591″ | Shank Length (LS) | 1.97″ |
| Usable Length (LU) | 1.022″ | Coolant Supply Property (CSP) | Coolant Thru |
| 应用 | | 钻削 | | 测量方式 | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Master Insert Identification (MIID) | H3P 0591 |
| Insert Seat Size Code (SSC) | 15 | Point Length (PL) | 0.1366″ |
| Cutting Diameter Minimum (DCN) | 0.591″ | 刀体材质 | Steel |
| Cutting Diameter Maximum (DCX) | 0.626″ | Flange Diameter (DF) | 0.984″ |
| Protruding Length (LPR) | 2.11″ | 十进制 | 0.591″ |
| Overall Length (OAL) | 4.081″ | 单位 | I |
产品特性

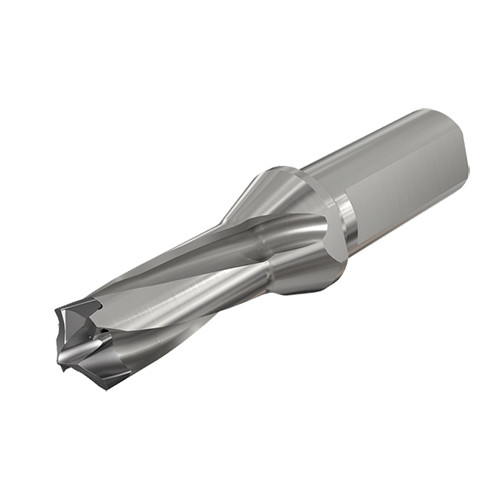

| 系列描述 | 带3个有效切削刃的可换头式钻头，带内冷却通孔，单平面削平柄，钻深比为1.5xD | COO | Israel |
| 备注 | 在采用12倍径钻头钻削前，推荐采用1.5倍径的DCN钻头或中心钻加工出预钻孔。但装夹HCP刀头时则无需加工预钻孔。 |
Shipping Info
包装重量
0.4475
