产品规格

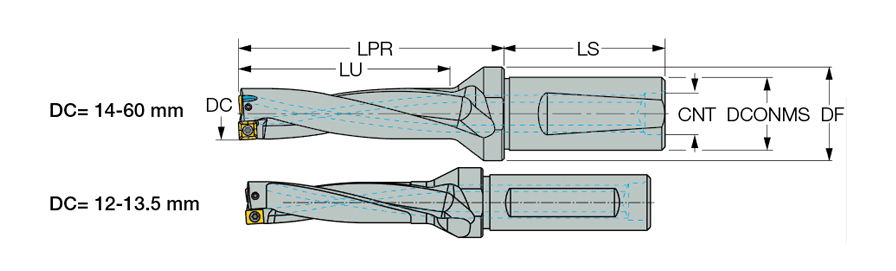

| Cutting Diameter (DC) | 19 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 76 mm | Cutting Diameter Maximum (DCX) | 20.8 mm |
| 应用 | | 钻削 | | Flange Diameter (DF) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | 测量方式 | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 060304-DT |
| Protruding Length (LPR) | 96 mm | 刀体材质 | Steel |
| Shank Length (LS) | 56 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 95.43 mm | 单位 | M |
| Overall Length (OAL) | 152 mm |
产品特性
| 系列描述 | DR-TWIST机夹式钻头，方形刀片，内冷，钻深比：4XD | COO | Israel |
| 备注 | 通常工况下孔公差D+0.35/-0.05。基于不同的工况和切削参数，孔公差在一定范围会内有所变化 |
Shipping Info
包装重量
0.3670
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
