产品规格

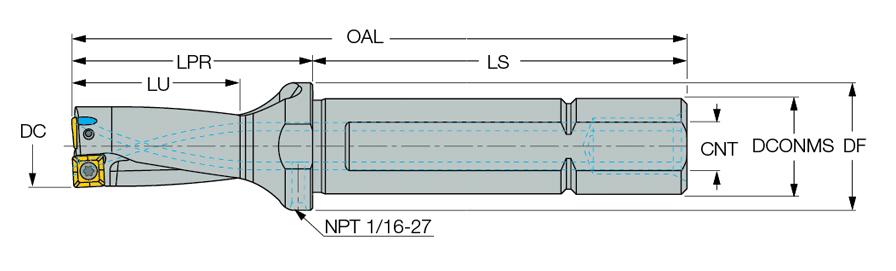

| Cutting Diameter (DC) | 0.844″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.69″ | Cutting Diameter Maximum (DCX) | 0.972″ |
| 应用 | | 钻削 | | Flange Diameter (DF) | 1.26″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | 测量方式 | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 07 |
| Protruding Length (LPR) | 2.55″ | 刀体材质 | Steel |
| Shank Length (LS) | 3″ | 十进制 | 0.844″ |
| Functional Length (LF) | 2.525″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 5.55″ | 单位 | I |
产品特性
| 系列描述 | DR-TWIST机夹式钻头，方形刀片，内冷，钻深比：2XD | COO | Israel |
| 备注 | Hole tolerance D+.006/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
包装重量
1.0318
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
