产品规格

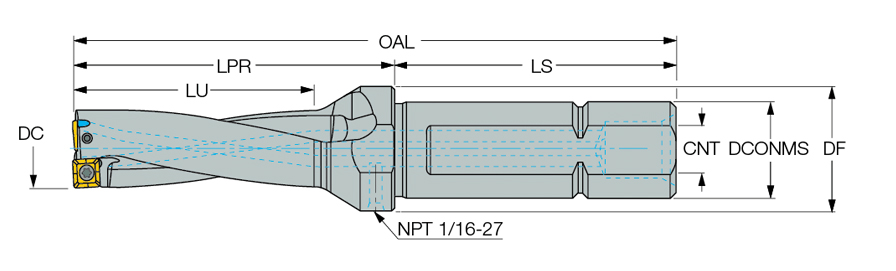

| Cutting Diameter (DC) | 0.812″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.44″ | Cutting Diameter Maximum (DCX) | 0.85″ |
| 应用 | | 钻削 | | Flange Diameter (DF) | 1.26″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | 测量方式 | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 060304-DT |
| Protruding Length (LPR) | 3.3″ | 刀体材质 | Steel |
| Shank Length (LS) | 3″ | 十进制 | 0.812″ |
| Functional Length (LF) | 3.276″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 6.3″ | 单位 | I |
产品特性

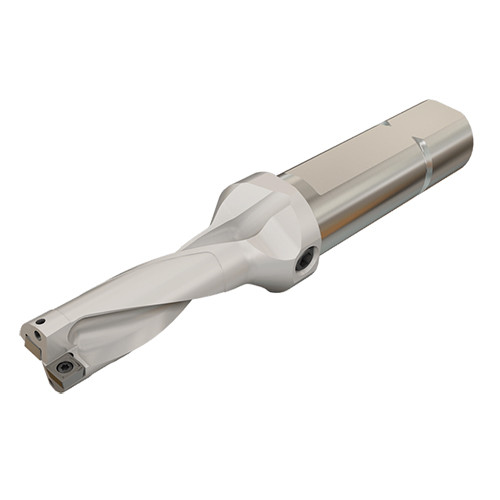

| 系列描述 | DR-TWIST机夹式钻头，方形刀片，内冷，钻深比：3XD | COO | Israel |
| 备注 | Hole tolerance D+.009/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
包装重量
1.0626
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
