产品规格

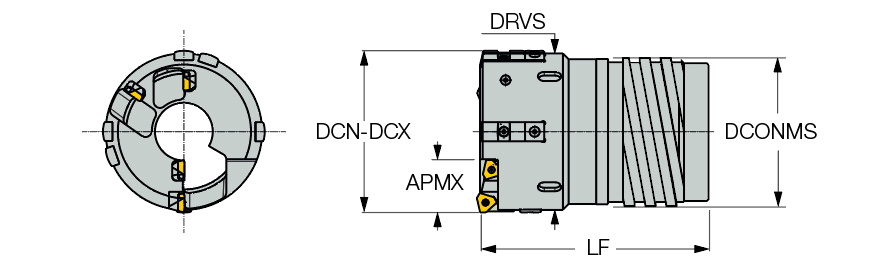

| 应用 | | 深孔钻 | | Cutting Diameter Minimum (DCN) | 232 mm |
| Connection Diameter Machine Side (DCONMS) | 220 mm | Cutting Diameter Maximum (DCX) | 243.99 mm |
| Functional Length (LF) | 284 mm | 测量方式 | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | 刀体材质 | Steel |
| Connection Thread Size (Ts) | TS-I34 | 单位 | M |
产品特性

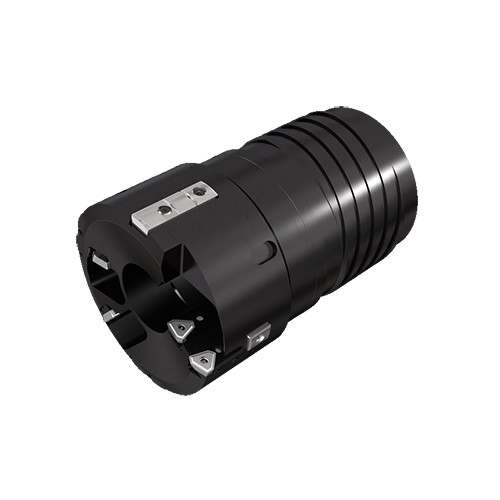

| 系列描述 | 4头外螺纹连接，机夹可调式单管套料钻（D100-328） | COO | Japan |

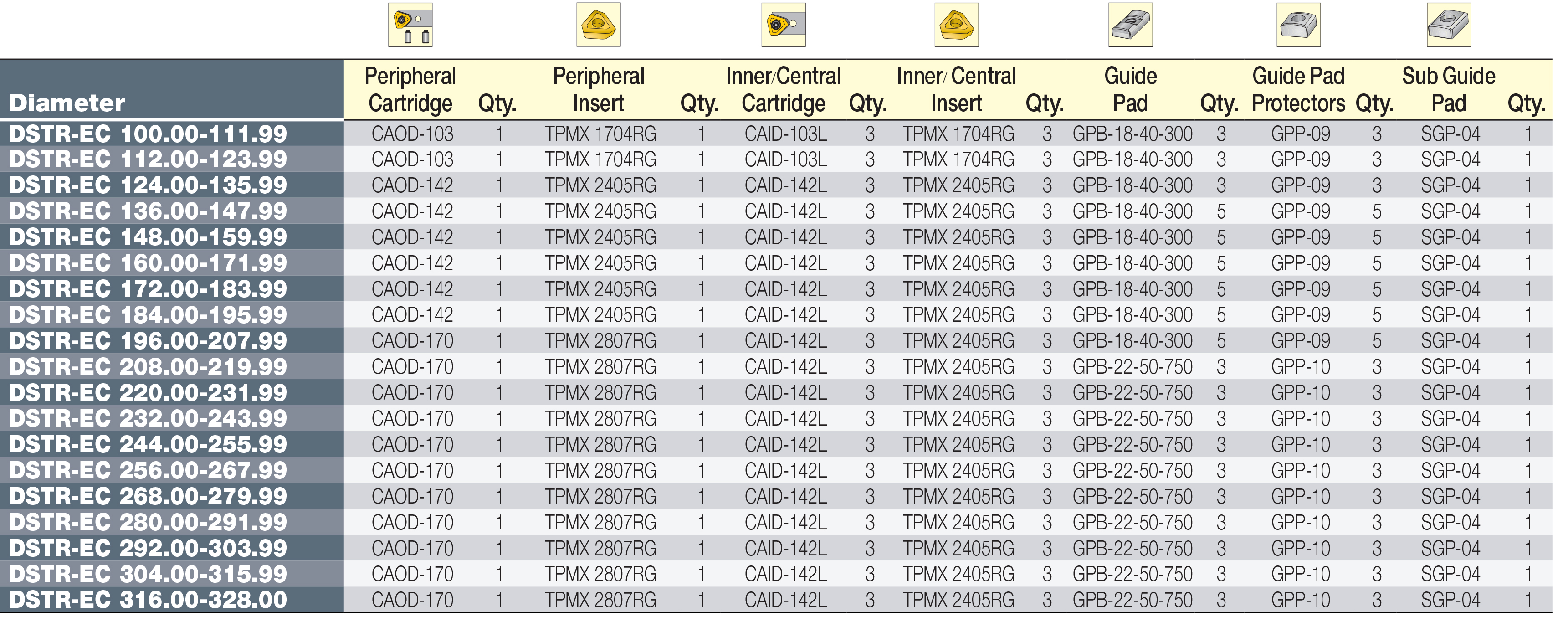

| 备注 | 有关配件和刀片的信息，请点击更多信息 订购示例： DSTR-EC 120.55 |
