产品规格

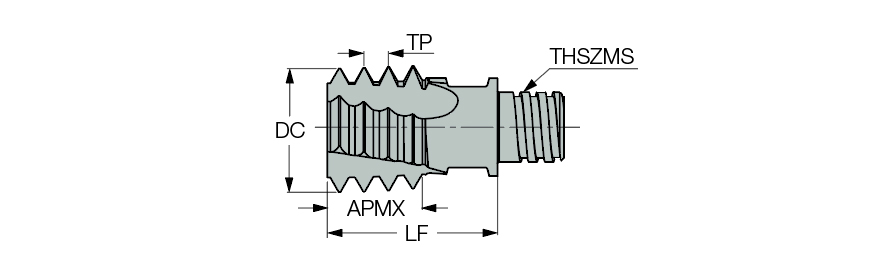

| 螺纹标准 | BSP |THFT | | 切削刃材质 | Carbide |
| Threads per Inch (TPI) | 19 | Tool Type | Solid carbide thread mills |
| Thread Diameter Size (TDZ) | G1/4-3/8 | Functional Length (LF) | 12.75 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | 测量方式 | Metric |
| Cutting Diameter (DC) | 10 mm | Overall Length (OAL) | 19.85 mm |
| Flute Count (NOF) | 4 | 刀体材质 | Carbide |
| 涂层 | TiAlN | 螺纹尺寸 | G1/4-3/8 - 19 |
| 等级 | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | Thread Form Type (THFT) | WH55 |
| 应用 | | 内孔螺纹铣削 | 外圆螺纹铣削 | | 单位 | M |
产品特性

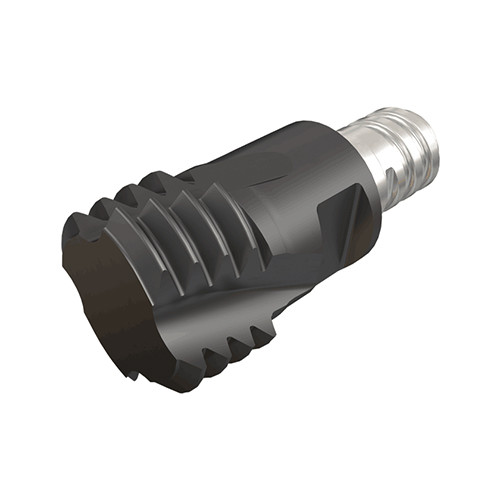

| 系列描述 | 变形金刚（MULTI-MASTER）模块螺纹连接式内螺纹/外螺纹铣刀头，用于加工惠氏55°BSW牙型螺纹 | COO | Israel |
| 备注 | 重要提示：描述及尺寸与新产品的装夹平面相关。用户有可能收到旧式ITEM（附带TORX扳手）直至库存清零 接柄，见页面 装卸扳手需单独订购，锁紧扭矩及装卸指南，点击“更多信息” 不需额外润滑连接螺纹 |
Shipping Info
包装重量
0.0165
